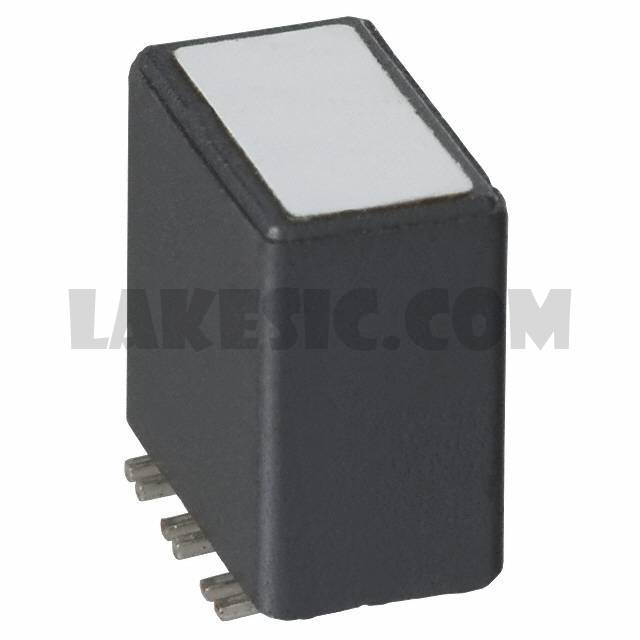

CM3822R201R-10
CM3822R201R-10
Part Number CM3822R201R-10 Description CMC 5A 6LN 200 OHM SMD Package / Case Vertical, 12 Flat LeadUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 6 Line Common Mode Choke Surface Mount 200 Ohms @ 100MHz 5A DCR 20mOhm
To learn about the specification of CM3822R201R-10, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CM3822R201R-10 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CM3822R201R-10.
We are offering CM3822R201R-10 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
CM3822R201R-10 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet CM3822R201R-10 Drawing Standard Package 1 Manufacturer Laird-Signal Integrity Products Series CM Packaging Cut Tape (CT) Part Status Active Filter Type Power Line Number of Lines 6 Impedance @ Frequency 200 Ohms @ 100MHz Current Rating (Max) 5A DC Resistance (DCR) (Max) 20mOhm Voltage Rating - DC - Voltage Rating - AC - Operating Temperature -40°C ~ 125°C Ratings - Approvals - Features - Mounting Type Surface Mount Size / Dimension 0.385" L x 0.265" W (9.78mm x 6.73mm) Height (Max) 0.406" (10.31mm) Package / Case Vertical, 12 Flat Lead
