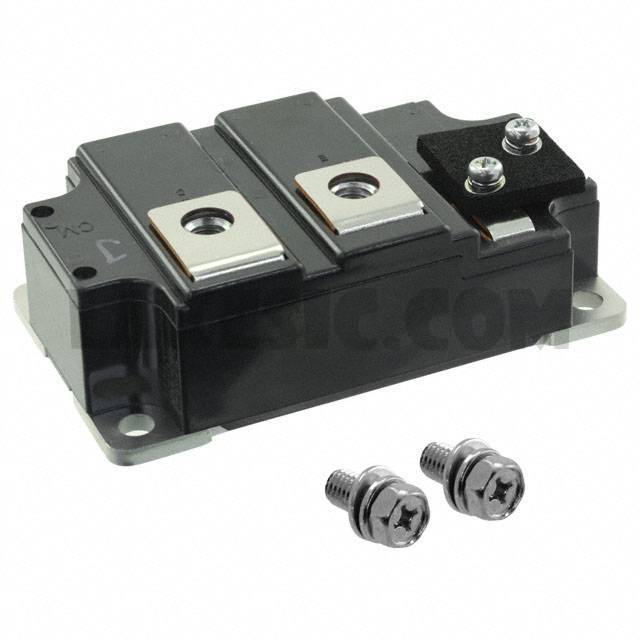

CM400HU-24F

Part NumberCM400HU-24F

ManufacturerPowerex Inc.

DescriptionIGBT MOD SGL 1200V 400A F SER

DatasheetMitsubishi General Catalog

Package / CaseModule

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Single 1200V 400A 1600W Chassis Mount Module

To learn about the specification of CM400HU-24F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CM400HU-24F with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CM400HU-24F.
We are offering CM400HU-24F for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CM400HU-24F - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

Mitsubishi General Catalog

Standard Package

Manufacturer

Powerex Inc.

Series

IGBTMOD™

Part Status

Discontinued at Digi-Key

IGBT Type

Trench

Configuration

Single

Voltage - Collector Emitter Breakdown (Max)

1200V

Current - Collector (Ic) (Max)

400A

Power - Max

1600W

Vce(on) (Max) @ Vge, Ic

2.4V @ 15V, 400A

Current - Collector Cutoff (Max)

2mA

Input Capacitance (Cies) @ Vce

160nF @ 10V

Input

Standard

NTC Thermistor

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

Module

Supplier Device Package
