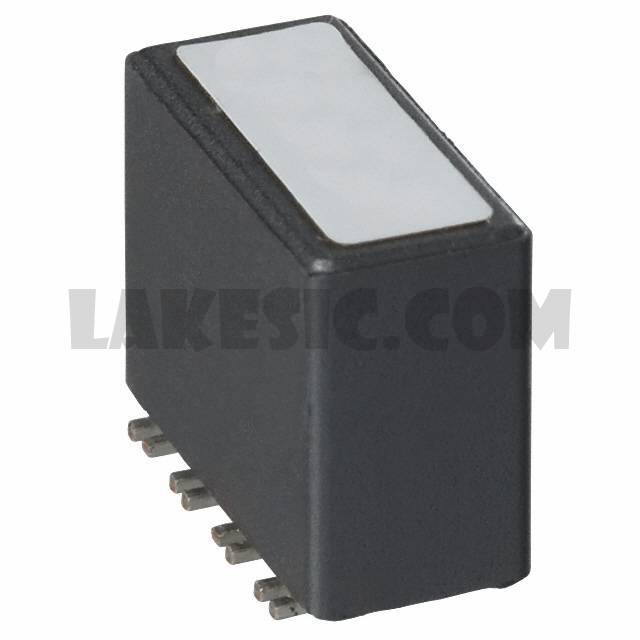

CM5022R201R-10

Part NumberCM5022R201R-10

ManufacturerLaird-Signal Integrity Products

DescriptionCMC 5A 8LN 200 OHM SMD

DatasheetEMI Filtering/RF Inductors Catalog

Package / CaseVertical, 16 Flat Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description8 Line Common Mode Choke Surface Mount 200 Ohms @ 100MHz 5A DCR 20mOhm

To learn about the specification of CM5022R201R-10, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CM5022R201R-10 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CM5022R201R-10.
We are offering CM5022R201R-10 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CM5022R201R-10 - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	EMI Filtering/RF Inductors Catalog
Standard Package	375
Manufacturer	Laird-Signal Integrity Products
Series	CM
Packaging	Tape & Reel (TR)
Part Status	Active
Filter Type	Power Line
Number of Lines	8
Impedance @ Frequency	200 Ohms @ 100MHz
Current Rating (Max)	5A
DC Resistance (DCR) (Max)	20mOhm
Voltage Rating - DC	-
Voltage Rating - AC	-
Operating Temperature	-40°C ~ 125°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.495" L x 0.265" W (12.57mm x 6.73mm)
Height (Max)	0.406" (10.31mm)
Package / Case	Vertical, 16 Flat Lead
