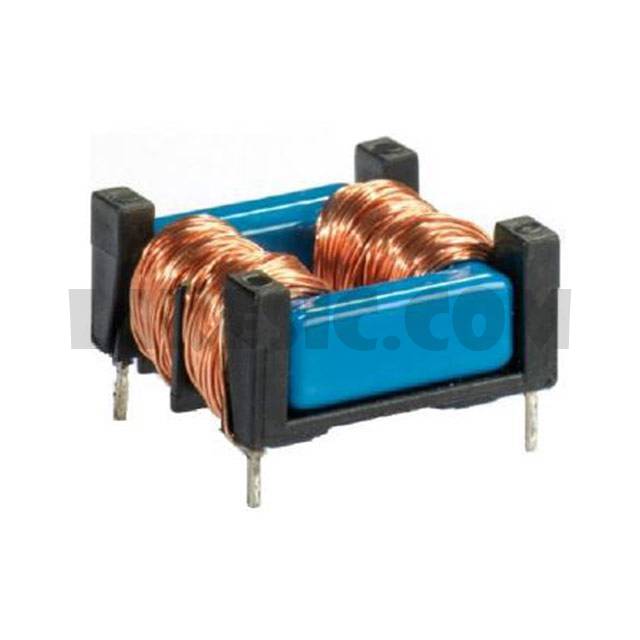

CMF23H-473111-B

Part NumberCMF23H-473111-B

ManufacturerTriad Magnetics

DescriptionCMC 47MH 1.1A 2LN TH

DatasheetCMF23H-473111 Datasheet

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description47mH @ 10kHz 2 Line Common Mode Choke Through Hole 1.1A DCR 884mOhm

To learn about the specification of CMF23H-473111-B, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CMF23H-473111-B with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CMF23H-473111-B.
We are offering CMF23H-473111-B for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CMF23H-473111-B - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	CMF23H-473111 Datasheet
Standard Package	1
Manufacturer	Triad Magnetics
Series	CMF
Packaging	Bulk
Part Status	Active
Filter Type	Power Line
Number of Lines	2
Inductance @ Frequency	47mH @ 10kHz
Current Rating (Max)	1.1A
DC Resistance (DCR) (Max)	884mOhm
Voltage Rating - DC	-
Voltage Rating - AC	300V
Operating Temperature	-40°C ~ 105°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Through Hole
Size / Dimension	1.043" L x 0.976" W (26.50mm x 24.80mm)
Height (Max)	0.551" (14.00mm)
Package / Case	Vertical, 4 PC Pin
