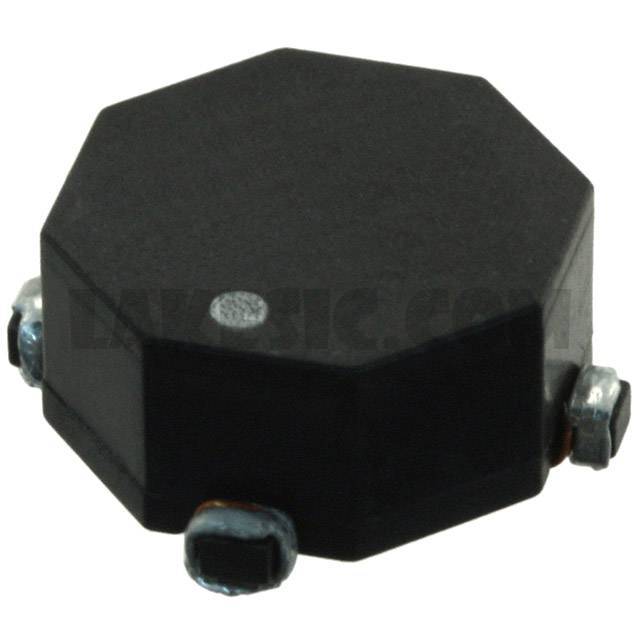

CMS3-7-R


CMS3-7-R

Part NumberCMS3-7-R

Manufacturer

Description

Datasheet

Package / CaseHorizontal, 4 PC Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

CMS3-7-R - Product Attributes

Categories Filters / Common Mode Chokes
Datasheet
Standard Package600
ManufacturerEaton - Electronics Division
SeriesCMS
PackagingTape & Reel (TR)
Part StatusActive
Filter TypePower Line
Number of Lines2
Inductance @ Frequency258µH @ 100kHz
Current Rating (Max)2.45A
DC Resistance (DCR) (Max)27mOhm (Typ)
Voltage Rating - DC-
Voltage Rating - AC-
Operating Temperature-40°C ~ 160°C
Ratings-
Approvals-
Features-
Mounting TypeSurface Mount
Size / Dimension0.450" L x 0.450" W (11.43mm x 11.43mm)
Height (Max)0.236" (6.00mm)
Package / CaseHorizontal, 4 PC Pad
