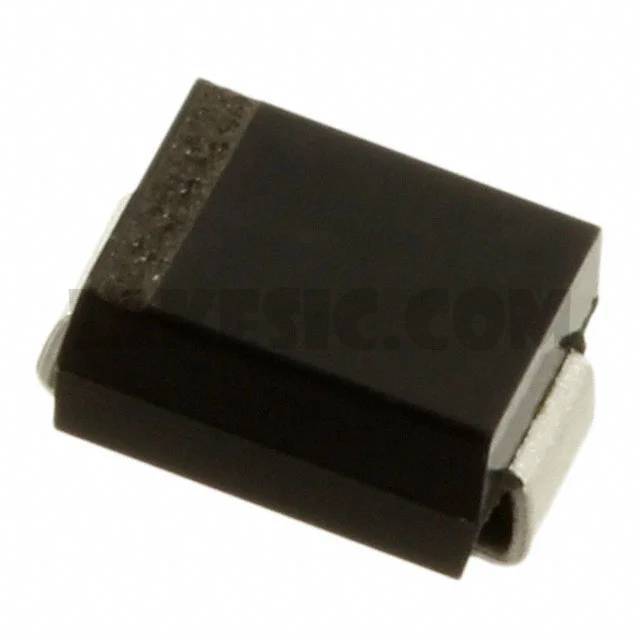

CMSH1-20 TR13

CMSH1-20 TR13

Part NumberCMSH1-20 TR13

ManufacturerCentral Semiconductor Corp

DescriptionDIODE SCHOTTKY 20V 1A SMB

DatasheetCMSH1-20,40,60,100

Package / CaseDO-214AA, SMB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 20V 1A Surface Mount SMB

To learn about the specification of CMSH1-20 TR13, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CMSH1-20 TR13 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CMSH1-20 TR13.
We are offering CMSH1-20 TR13 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CMSH1-20 TR13 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	CMSH1-20,40,60,100
Standard Package	3000
Manufacturer	Central Semiconductor Corp
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	20V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	550mV @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	500µA @ 20V
Capacitance @ Vr, F	110pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	DO-214AA, SMB
Supplier Device Package	SMB
Operating Temperature - Junction	-65°C ~ 150°C
