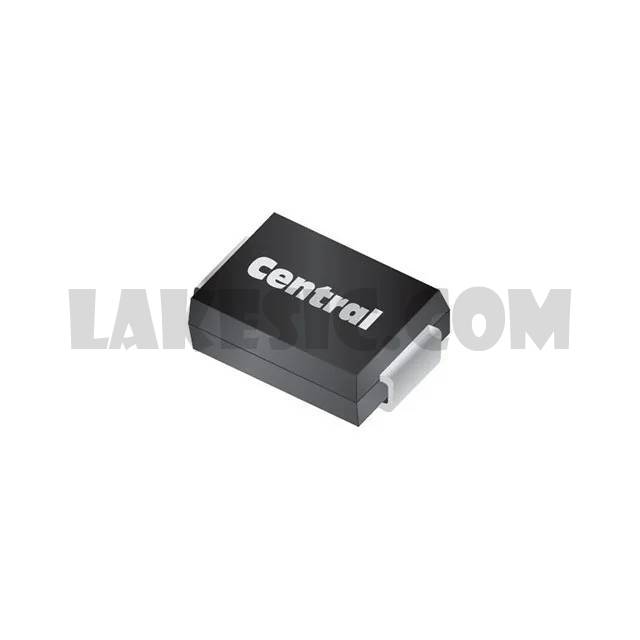

CMSH2-40M TR13

CMSH2-40M TR13

Part NumberCMSH2-40M TR13

ManufacturerCentral Semiconductor Corp

DescriptionDIODE SCHOTTKY 40V 2A SMA

DatasheetCMSH2-20M,40M,60M,100M

Package / CaseDO-214AC, SMA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 40V 2A Surface Mount SMA

To learn about the specification of CMSH2-40M TR13, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CMSH2-40M TR13 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CMSH2-40M TR13.
We are offering CMSH2-40M TR13 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CMSH2-40M TR13 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	CMSH2-20M,40M,60M,100M
Standard Package	1
Manufacturer	Central Semiconductor Corp
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io)	2A
Voltage - Forward (Vf) (Max) @ If	550mV @ 2A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	500µA @ 40V
Capacitance @ Vr, F	150pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	DO-214AC, SMA
Supplier Device Package	SMA
Operating Temperature - Junction	-65°C ~ 150°C
