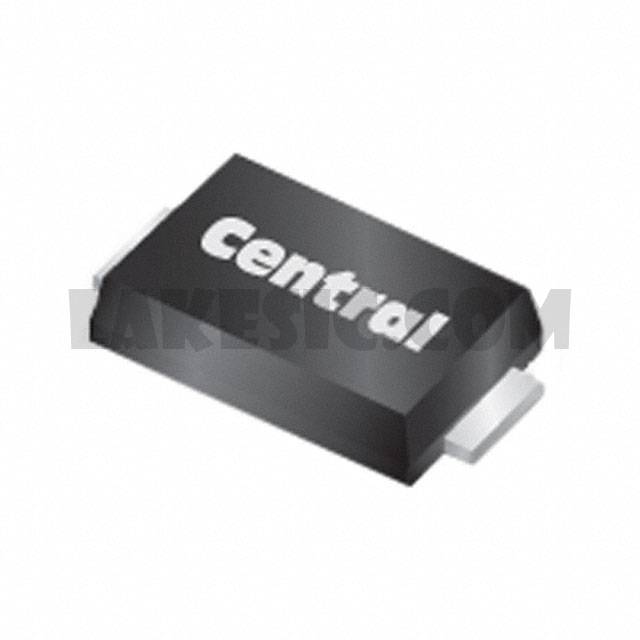

CMSH3-150MFL TR13

CMSH3-150MFL TR13

Part NumberCMSH3-150MFL TR13

ManufacturerCentral Semiconductor Corp

DescriptionDIODE SCHOTTKY 150V 3A SMAFLAT

DatasheetCMSH3-100,150,200MFL

Package / CaseDO-221AC, SMA Flat Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 150V 3A Surface Mount SMAflat

To learn about the specification of CMSH3-150MFL TR13, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CMSH3-150MFL TR13 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CMSH3-150MFL TR13.
We are offering CMSH3-150MFL TR13 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CMSH3-150MFL TR13 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	CMSH3-100,150,200MFL
Standard Package	10000
Manufacturer	Central Semiconductor Corp
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	150V
Current - Average Rectified (Io)	3A
Voltage - Forward (Vf) (Max) @ If	900mV @ 3A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	50µA @ 150V
Capacitance @ Vr, F	90pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	DO-221AC, SMA Flat Leads
Supplier Device Package	SMAflat
Operating Temperature - Junction	-65°C ~ 150°C
