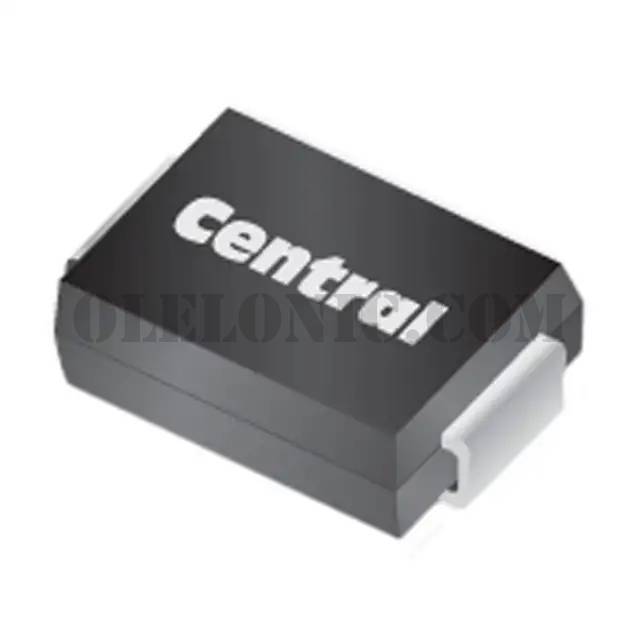

CMSSH-3S BK

Part NumberCMSSH-3S BK

ManufacturerCentral Semiconductor Corp

DescriptionDIODE SCHOTTKY 30V 100MA SMC

DatasheetCMSSH-3(A,C,S)

Package / CaseDO-214AB, SMC

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Series Connection Schottky 30V 100mA (DC) Surface Mount DO-214AB, SMC

To learn about the specification of CMSSH-3S BK, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CMSSH-3S BK with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CMSSH-3S BK.
We are offering CMSSH-3S BK for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CMSSH-3S BK - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Rectifiers - Arrays

Datasheet

CMSSH-3(A,C,S)

Standard Package

5000

Manufacturer

Central Semiconductor Corp

Series

Packaging

Bulk

Part Status

Active

Diode Configuration

1 Pair Series Connection

Diode Type

Schottky

Voltage - DC Reverse (Vr) (Max)

30V

Current - Average Rectified (Io) (per Diode)

100mA (DC)

Voltage - Forward (Vf) (Max) @ If

1V @ 100mA

Speed

Small Signal =< 200mA (Io), Any Speed

Reverse Recovery Time (trr)

5ns

Current - Reverse Leakage @ Vr

500nA @ 25V

Operating Temperature - Junction

-65°C ~ 150°C

Mounting Type

Surface Mount

Package / Case

DO-214AB, SMC

Supplier Device Package

SMC
