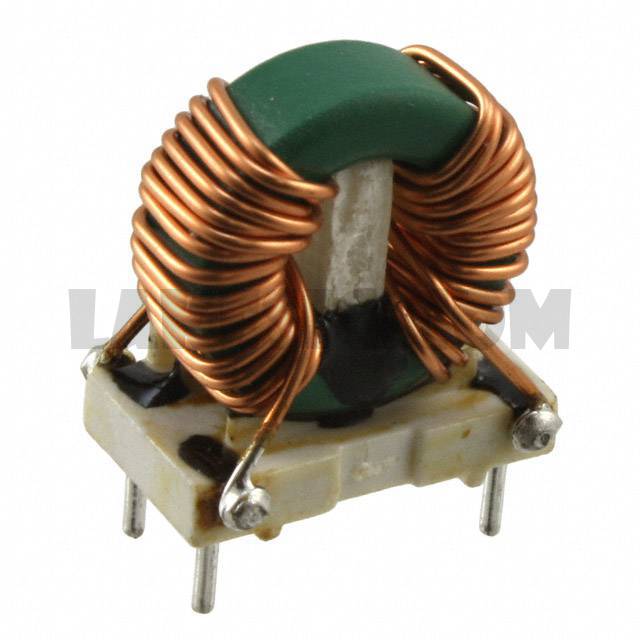

CMT-8103

Part NumberCMT-8103

ManufacturerTriad Magnetics

DescriptionCMC 1MH 4.8A 2LN TH

DatasheetCMT-8103

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1mH @ 1kHz 2 Line Common Mode Choke Through Hole 4.8A DCR 22mOhm

To learn about the specification of CMT-8103, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CMT-8103 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CMT-8103.
We are offering CMT-8103 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CMT-8103 - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

CMT-8103

Standard Package

Manufacturer

Triad Magnetics

Series

CMT

Packaging

Bulk

Part Status

Active

Filter Type

Power Line

Number of Lines

Inductance @ Frequency

1mH @ 1kHz

Current Rating (Max)

4.8A

DC Resistance (DCR) (Max)

22mOhm

Voltage Rating - DC

Voltage Rating - AC

250V

Operating Temperature

-55°C ~ 105°C

Ratings

Approvals

CSA, IEC, UL, VDE

Features

ESD

Mounting Type

Through Hole

Size / Dimension

0.760" L x 0.615" W (19.30mm x 15.62mm)

Height (Max)

0.900" (22.86mm)

Package / Case

Vertical, 4 PC Pin
