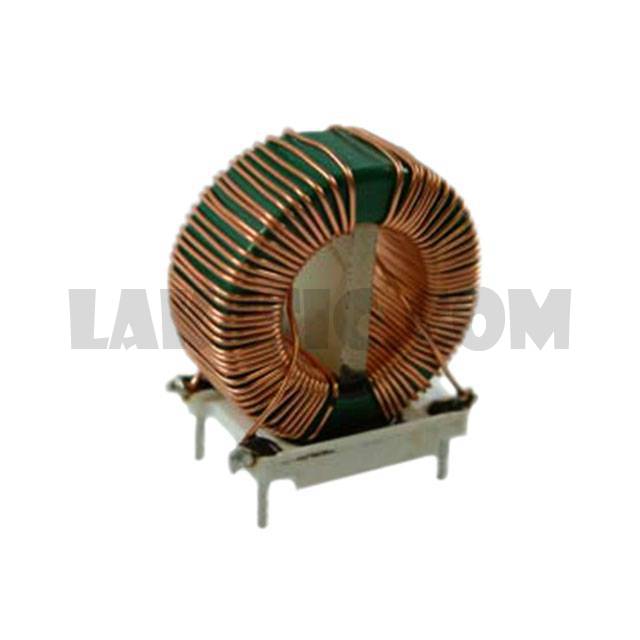

CMT-8110-B

Part NumberCMT-8110-B

ManufacturerTriad Magnetics

DescriptionCMC 20MH 2.9A 2LN TH

DatasheetCMT-8110

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description20mH @ 1kHz 2 Line Common Mode Choke Through Hole 2.9A DCR 210mOhm

To learn about the specification of CMT-8110-B, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CMT-8110-B with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CMT-8110-B.
We are offering CMT-8110-B for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CMT-8110-B - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

CMT-8110

Standard Package

140

Manufacturer

Triad Magnetics

Series

CMT

Packaging

Bulk

Part Status

Active

Filter Type

Power Line

Number of Lines

Inductance @ Frequency

20mH @ 1kHz

Current Rating (Max)

2.9A

DC Resistance (DCR) (Max)

210mOhm

Voltage Rating - DC

Voltage Rating - AC

250V

Operating Temperature

-55°C ~ 105°C

Ratings

Approvals

CSA, IEC, UL, VDE

Features

ESD

Mounting Type

Through Hole

Size / Dimension

1.350" L x 0.800" W (34.29mm x 20.32mm)

Height (Max)

1.450" (36.83mm)

Package / Case

Vertical, 4 PC Pin
