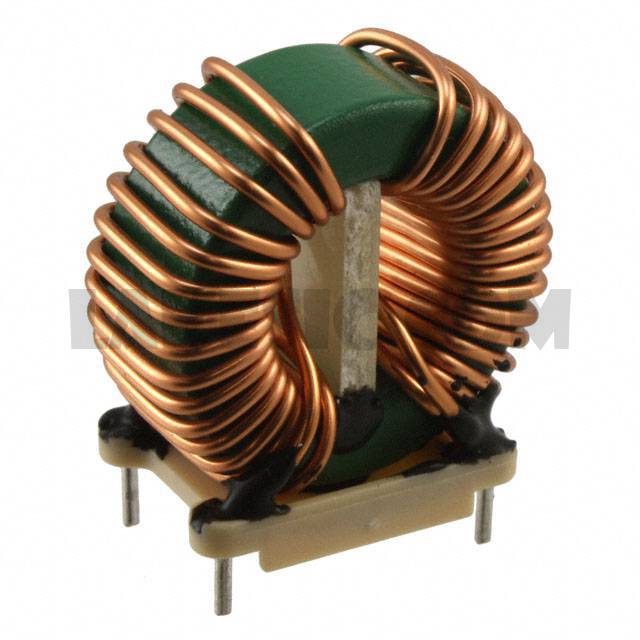

CMT-8114

Part NumberCMT-8114

ManufacturerTriad Magnetics

DescriptionCMC 2.5MH 12.5A 2LN TH

DatasheetCMT-8114

Package / CaseVertical, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2.5mH @ 1kHz 2 Line Common Mode Choke Through Hole 12.5A DCR 11mOhm

To learn about the specification of CMT-8114, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CMT-8114 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CMT-8114.
We are offering CMT-8114 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CMT-8114 - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

CMT-8114

Standard Package

Manufacturer

Triad Magnetics

Series

CMT

Packaging

Bulk

Part Status

Active

Filter Type

Power Line

Number of Lines

Inductance @ Frequency

2.5mH @ 1kHz

Current Rating (Max)

12.5A

DC Resistance (DCR) (Max)

11mOhm

Voltage Rating - DC

Voltage Rating - AC

250V

Operating Temperature

-55°C ~ 105°C

Ratings

Approvals

CSA, IEC, UL, VDE

Features

ESD

Mounting Type

Through Hole

Size / Dimension

1.450" L x 0.800" W (36.83mm x 20.32mm)

Height (Max)

1.500" (38.10mm)

Package / Case

Vertical, 4 PC Pin
