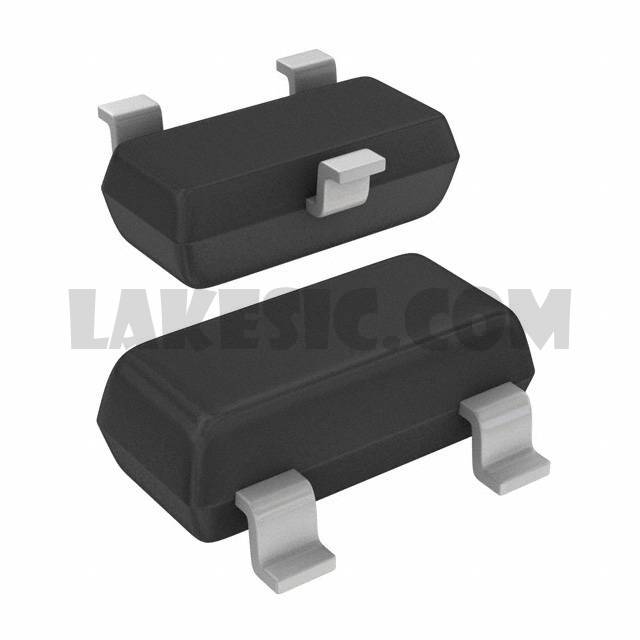

CPH3115-TL-E

CPH3115-TL-E

Part NumberCPH3115-TL-E

ManufacturerON Semiconductor

DescriptionTRANS PNP 30V 1.5A CPH3

DatasheetCPH3115,3215

Package / CaseSC-96

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 30V 1.5A 450MHz 900mW Surface Mount 3-CPH

To learn about the specification of CPH3115-TL-E, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CPH3115-TL-E with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CPH3115-TL-E.
We are offering CPH3115-TL-E for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CPH3115-TL-E - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	CPH3115,3215
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	1.5A
Voltage - Collector Emitter Breakdown (Max)	30V
Vce Saturation (Max) @ Ib, Ic	375mV @ 15mA, 750mA
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 100mA, 2V
Power - Max	900mW
Frequency - Transition	450MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-96
Supplier Device Package	3-CPH
