CPH5518-TL-E

Part NumberCPH5518-TL-E

ManufacturerON Semiconductor

DescriptionTRANS NPN/PNP 80V/50V 1A 5CPH

DatasheetCPH5518

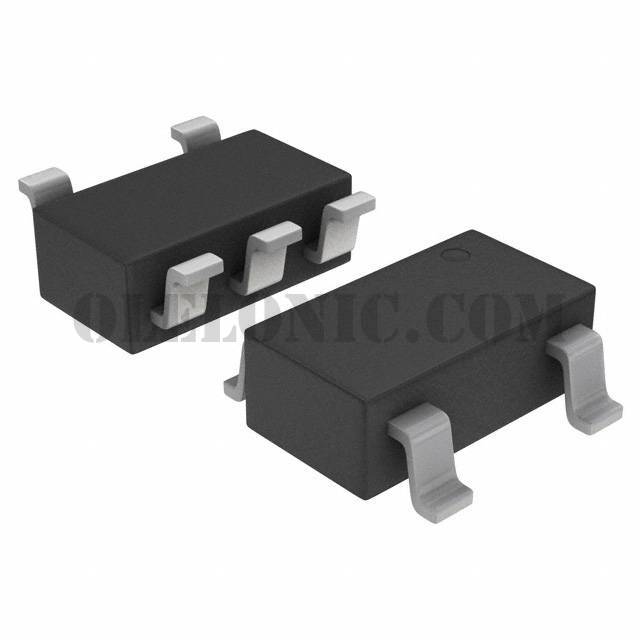

Package / CaseSC-74A, SOT-753

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array NPN, PNP (Emitter Coupled) 80V, 50V 1A 420MHz 1.2W Surface Mount 5-CPH

To learn about the specification of CPH5518-TL-E, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CPH5518-TL-E with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CPH5518-TL-E.
We are offering CPH5518-TL-E for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CPH5518-TL-E - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet	CPH5518
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	NPN, PNP (Emitter Coupled)
Current - Collector (Ic) (Max)	1A
Voltage - Collector Emitter Breakdown (Max)	80V, 50V
Vce Saturation (Max) @ Ib, Ic	190mV @ 10mA, 500mA
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 100mA, 2V
Power - Max	1.2W
Frequency - Transition	420MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Supplier Device Package	5-CPH
