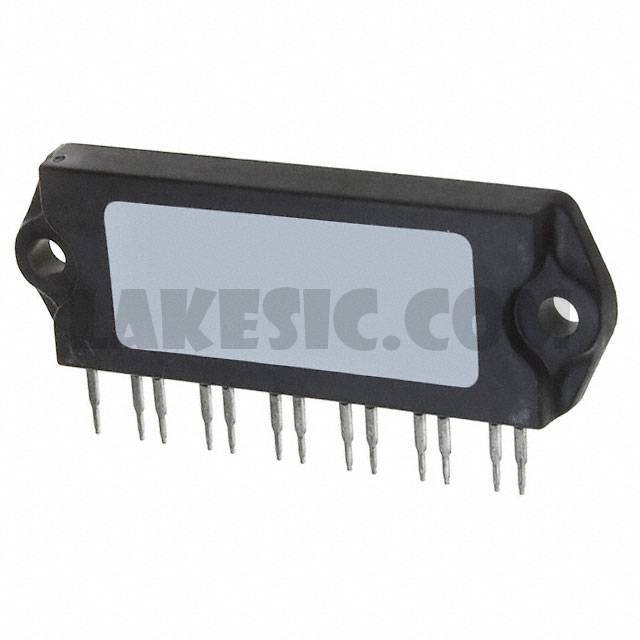

CPV362M4K

Part NumberCPV362M4K

ManufacturerVishay Semiconductor Diodes Division

DescriptionIGBT SIP MODULE 600V 31 IMS-2

DatasheetVS-CPV362M4FPbF

Package / Case19-SIP (13 Leads), IMS-2

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Three Phase Inverter 600V 5.7A 23W Through Hole IMS-2

To learn about the specification of CPV362M4K, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CPV362M4K with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CPV362M4K.
We are offering CPV362M4K for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CPV362M4K - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Modules

Datasheet

VS-CPV362M4FPbF

Standard Package

160

Manufacturer

Vishay Semiconductor Diodes Division

Series

Part Status

Active

IGBT Type

Configuration

Three Phase Inverter

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

5.7A

Power - Max

23W

Vce(on) (Max) @ Vge, Ic

1.93V @ 15V, 3A

Current - Collector Cutoff (Max)

250µA

Input Capacitance (Cies) @ Vce

0.45nF @ 30V

Input

Standard

NTC Thermistor

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Through Hole

Package / Case

19-SIP (13 Leads), IMS-2

Supplier Device Package

IMS-2

Base Part Number

CPV362M4
