CSD13381F4

CSD13381F4

Part NumberCSD13381F4

ManufacturerTexas Instruments

DescriptionMOSFET N-CH 12V 2.1A 3PICOSTAR

DatasheetCSD13381F4

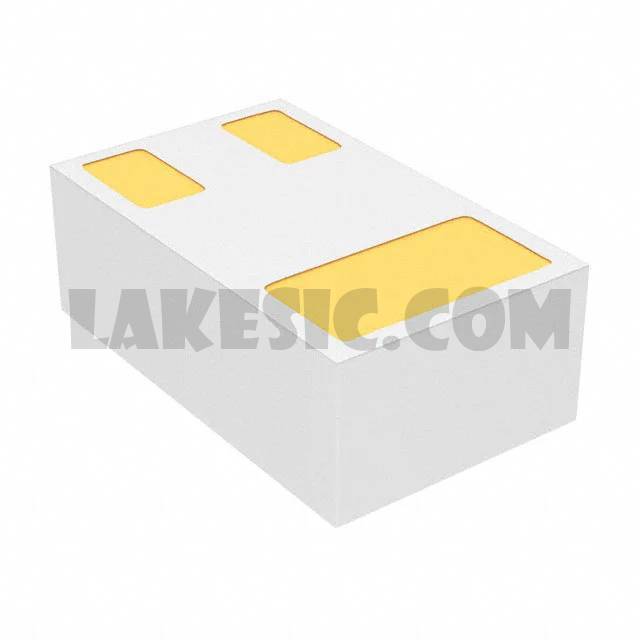

Package / Case3-XFDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 12V 2.1A (Ta) 500mW (Ta) Surface Mount 3-PICOSTAR

To learn about the specification of CSD13381F4, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD13381F4 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD13381F4.
We are offering CSD13381F4 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD13381F4 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	CSD13381F4
Standard Package	3000
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	2.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	180mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id	1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	1.4nC @ 4.5V
Vgs (Max)	8V
Input Capacitance (Ciss) (Max) @ Vds	200pF @ 6V
FET Feature	-
Power Dissipation (Max)	500mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	3-PICOSTAR
Package / Case	3-XFDFN
