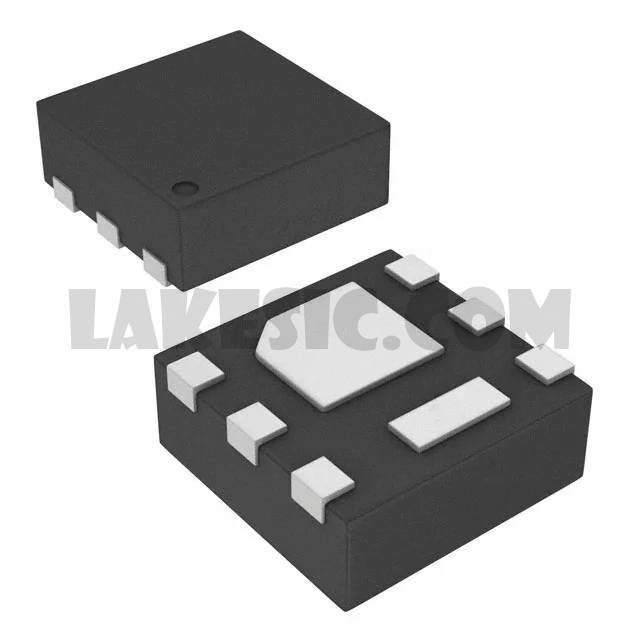

CSD17313Q2

CSD17313Q2

Part NumberCSD17313Q2

ManufacturerTexas Instruments

DescriptionMOSFET N-CH 30V 5A 6SON

DatasheetCSD17313Q2

Package / Case6-WDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 5A (Tc) 2.3W (Ta) Surface Mount 6-WSON (2x2)

To learn about the specification of CSD17313Q2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD17313Q2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD17313Q2.
We are offering CSD17313Q2 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD17313Q2 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	CSD17313Q2
Standard Package	1
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	3V, 8V
Rds On (Max) @ Id, Vgs	30mOhm @ 4A, 8V
Vgs(th) (Max) @ Id	1.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	2.7nC @ 4.5V
Vgs (Max)	+10V, -8V
Input Capacitance (Ciss) (Max) @ Vds	340pF @ 15V
FET Feature	-
Power Dissipation (Max)	2.3W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-WSON (2x2)
Package / Case	6-WDFN Exposed Pad
