CSD18510KCS

CSD18510KCS

Part NumberCSD18510KCS

ManufacturerTexas Instruments

DescriptionMOSFET N-CH 40V 200A TO220-3

DatasheetCSD18510KCS Datasheet

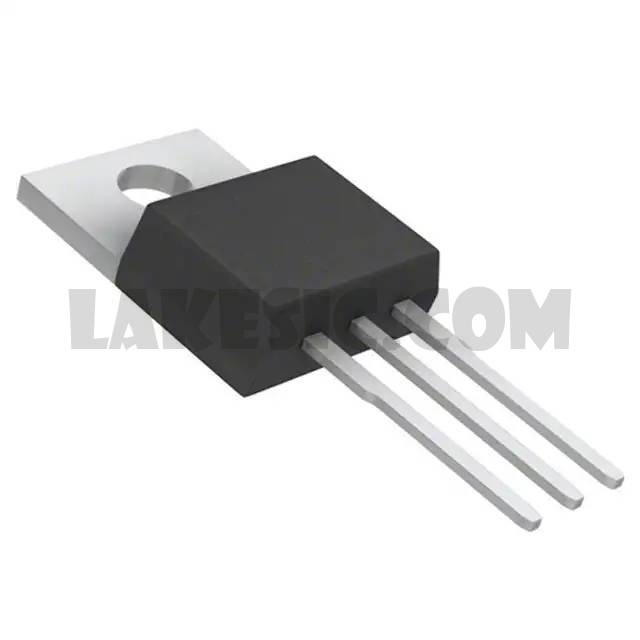

Package / CaseTO-220-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 200A (Ta) 250W (Ta) Through Hole TO-220-3

To learn about the specification of CSD18510KCS, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD18510KCS with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD18510KCS.
We are offering CSD18510KCS for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD18510KCS - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	CSD18510KCS Datasheet
Standard Package	50
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	200A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	1.7mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	75nC @ 4.5V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	11400pF @ 20V
FET Feature	-
Power Dissipation (Max)	250W (Ta)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220-3
Package / Case	TO-220-3
