CSD83325L

Part NumberCSD83325L

ManufacturerTexas Instruments

DescriptionMOSFET 2N-CH 12V 6PICOSTAR

DatasheetCSD83325L

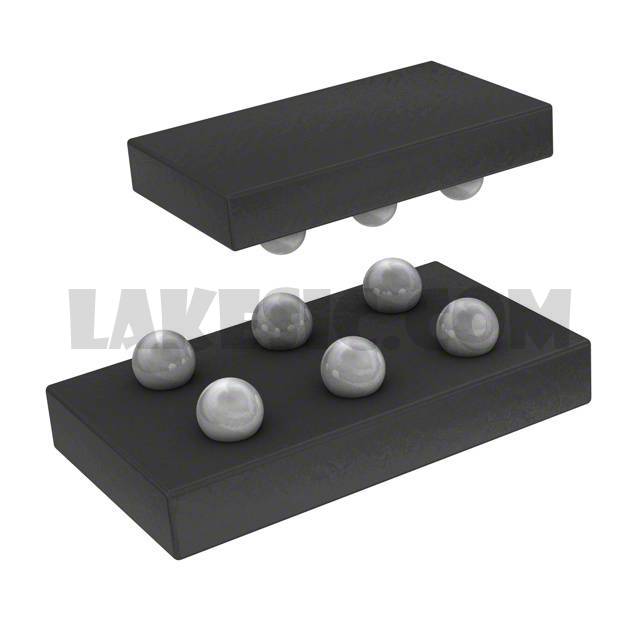

Package / Case6-XFBGA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) Common Drain 12V 2.3W Surface Mount 6-PicoStar

To learn about the specification of CSD83325L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD83325L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD83325L.
We are offering CSD83325L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD83325L - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	CSD83325L
Standard Package	1
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Dual) Common Drain
FET Feature	Standard
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	-
Rds On (Max) @ Id, Vgs	-
Vgs(th) (Max) @ Id	1.25V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	10.9nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	-
Power - Max	2.3W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-XFBGA
Supplier Device Package	6-PicoStar
