CSD87333Q3D

CSD87333Q3D

Part NumberCSD87333Q3D

ManufacturerTexas Instruments

DescriptionMOSFET 2N-CH 30V 15A 8SON

DatasheetCSD87333Q3D

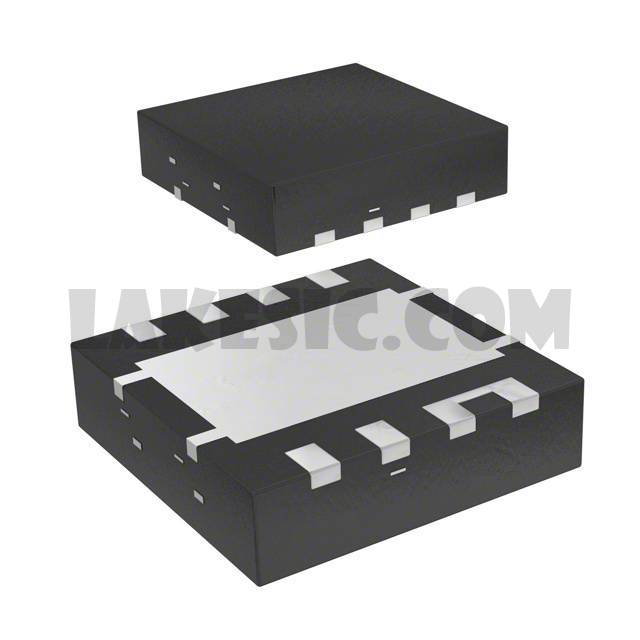

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) Asymmetrical 30V 15A 6W Surface Mount 8-VSON (3.3x3.3)

To learn about the specification of CSD87333Q3D, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD87333Q3D with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD87333Q3D.
We are offering CSD87333Q3D for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD87333Q3D - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	CSD87333Q3D
Standard Package	2500
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual) Asymmetrical
FET Feature	Logic Level Gate, 5V Drive
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	15A
Rds On (Max) @ Id, Vgs	14.3mOhm @ 4A, 8V
Vgs(th) (Max) @ Id	1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	4.6nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	662pF @ 15V
Power - Max	6W
Operating Temperature	125°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerTDFN
Supplier Device Package	8-VSON (3.3x3.3)
Base Part Number	CSD87333
