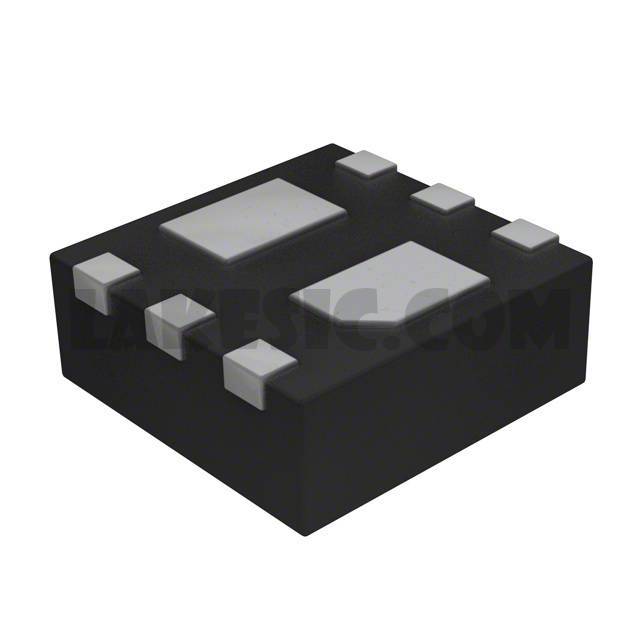

CSD87502Q2

Part NumberCSD87502Q2

ManufacturerTexas Instruments

DescriptionMOSFET 2N-CH 30V 5A 6WSON

DatasheetCSD87502Q2 Datasheet

Package / Case6-WDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 30V 5A 2.3W Surface Mount 6-WSON (2x2)

To learn about the specification of CSD87502Q2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD87502Q2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD87502Q2.
We are offering CSD87502Q2 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD87502Q2 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	CSD87502Q2 Datasheet
Standard Package	3000
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	5A
Rds On (Max) @ Id, Vgs	32.4mOhm @ 4A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	353pF @ 15V
Power - Max	2.3W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-WDFN Exposed Pad
Supplier Device Package	6-WSON (2x2)
