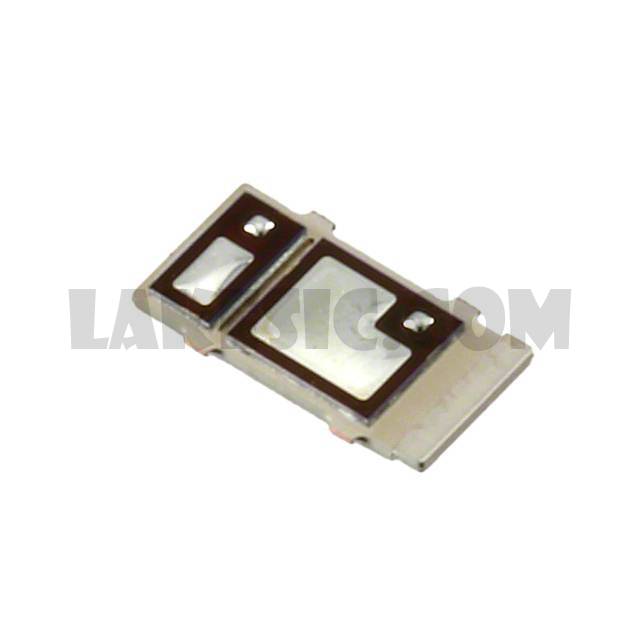

CSD87588NT

CSD87588NT

Part NumberCSD87588NT

ManufacturerTexas Instruments

DescriptionMOSFET 2N-CH 30V 25A 5PTAB

DatasheetCSD87588N Datasheet

Package / Case5-LGA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Half Bridge) 30V 25A 6W Surface Mount 5-PTAB (5x3.5)

To learn about the specification of CSD87588NT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD87588NT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD87588NT.
We are offering CSD87588NT for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD87588NT - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	CSD87588N Datasheet
Standard Package	1
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	25A
Rds On (Max) @ Id, Vgs	9.6mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	1.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	4.1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	736pF @ 15V
Power - Max	6W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	5-LGA
Supplier Device Package	5-PTAB (5x3.5)
Base Part Number	CSD87588
