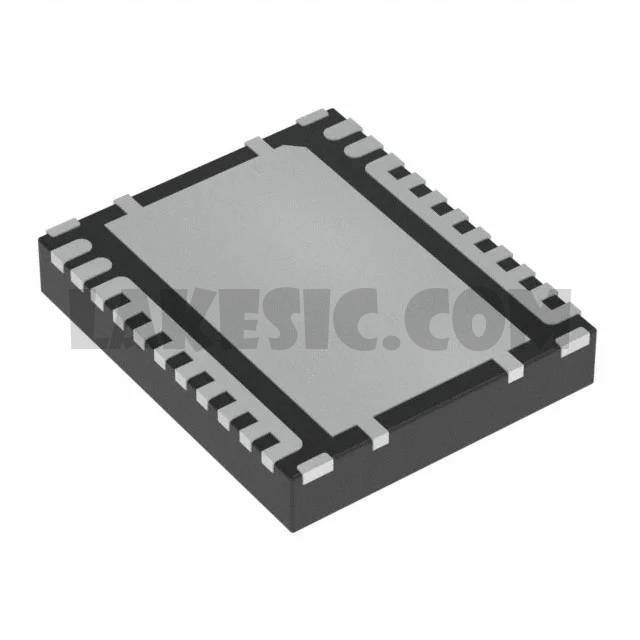

CSD88599Q5DC

Part NumberCSD88599Q5DC

ManufacturerTexas Instruments

DescriptionMOSFET 2 N-CH 60V 22-VSON-CLIP

DatasheetCSD88599Q5DC Datasheet

Package / Case22-PowerTFDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Half Bridge) 60V 12W Surface Mount 22-VSON-CLIP (5x6)

To learn about the specification of CSD88599Q5DC, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD88599Q5DC with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD88599Q5DC.
We are offering CSD88599Q5DC for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD88599Q5DC - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	CSD88599Q5DC Datasheet
Standard Package	1
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Standard
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	-
Rds On (Max) @ Id, Vgs	2.1mOhm @ 30A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	27nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	4840pF @ 30V
Power - Max	12W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	22-PowerTFDFN
Supplier Device Package	22-VSON-CLIP (5x6)
