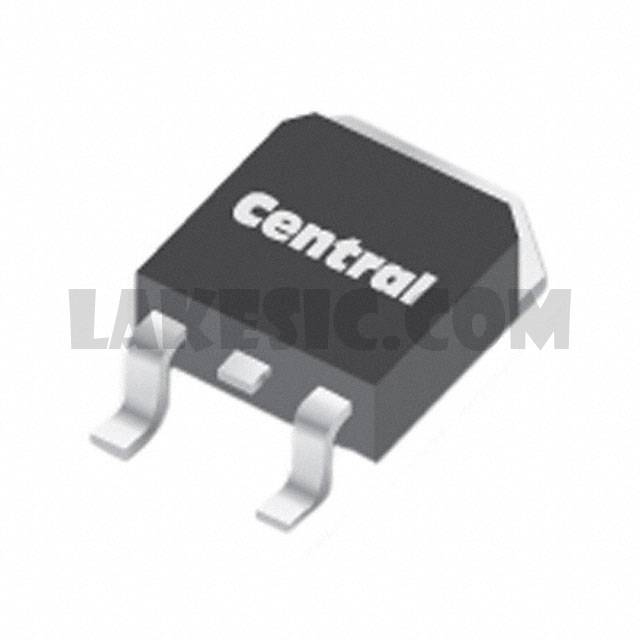

CSHDD16-200C TR13

Part NumberCSHDD16-200C TR13

ManufacturerCentral Semiconductor Corp

DescriptionDIODE ARRAY SCHOTTKY 200V D2PAK

DatasheetCSHDD16-40C,60C,100C,200C

Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Schottky 200V 16A Surface Mount TO-263-3, D²Pak (2 Leads + Tab), TO-263AB

To learn about the specification of CSHDD16-200C TR13, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSHDD16-200C TR13 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSHDD16-200C TR13.
We are offering CSHDD16-200C TR13 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSHDD16-200C TR13 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	CSHDD16-40C,60C,100C,200C
Standard Package	1
Manufacturer	Central Semiconductor Corp
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Configuration	1 Pair Common Cathode
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io) (per Diode)	16A
Voltage - Forward (Vf) (Max) @ If	1.2V @ 16A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	50µA @ 200V
Operating Temperature - Junction	-65°C ~ 175°C
Mounting Type	Surface Mount
Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	D2PAK
