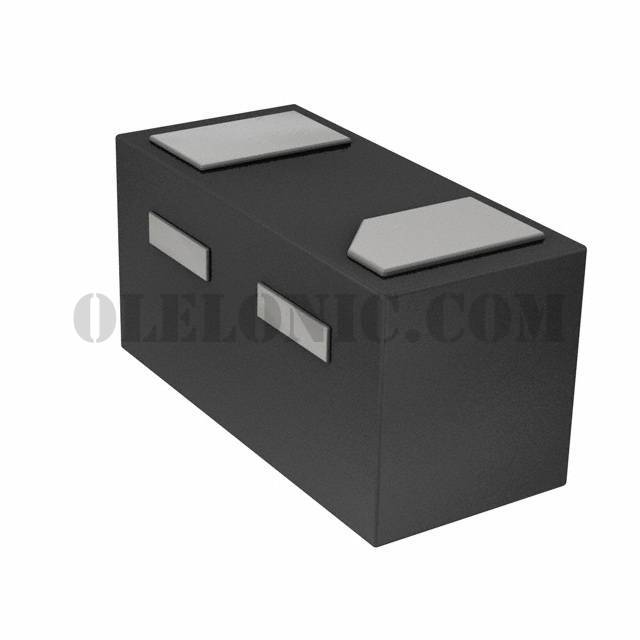

CTLSH01-30 TR

CTLSH01-30 TR

Part NumberCTLSH01-30 TR

ManufacturerCentral Semiconductor Corp

DescriptionDIODE SCHOTTKY 30V 100MA 2DFN

DatasheetCTLSH01-30

Package / Case0201 (0603 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 30V 100mA Surface Mount TLM2D3D6

To learn about the specification of CTLSH01-30 TR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CTLSH01-30 TR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CTLSH01-30 TR.
We are offering CTLSH01-30 TR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CTLSH01-30 TR - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	CTLSH01-30
Standard Package	8000
Manufacturer	Central Semiconductor Corp
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	100mA
Voltage - Forward (Vf) (Max) @ If	460mV @ 10mA
Speed	Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr	300nA @ 10V
Capacitance @ Vr, F	7pF @ 0V, 1MHz
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	TLM2D3D6
Operating Temperature - Junction	-65°C ~ 125°C
