CTX15-1P-R

Part NumberCTX15-1P-R

ManufacturerEaton - Electronics Division

DescriptionINDUCT ARRAY 2 COIL 15.03UH SMD

DatasheetCTX Series ECONO-PAC, OCTA-PAC/PLUS

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionUnshielded 2 Coil Inductor Array 60.12µH Inductance - Connected in Series 15.03µH Inductance - Connected in Parallel 87mOhm Max DC Resistance (DCR) - Parallel 1.4A Nonstandard

To learn about the specification of CTX15-1P-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CTX15-1P-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CTX15-1P-R.
We are offering CTX15-1P-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CTX15-1P-R - Product Attributes

Categories

Inductors, Coils, Chokes / Arrays, Signal Transformers

Datasheet

CTX Series ECONO-PAC, OCTA-PAC/PLUS

Standard Package

1100

Manufacturer

Eaton - Electronics Division

Series

Econo-Pac™

Packaging

Tape & Reel (TR)

Part Status

Active

Number of Coils

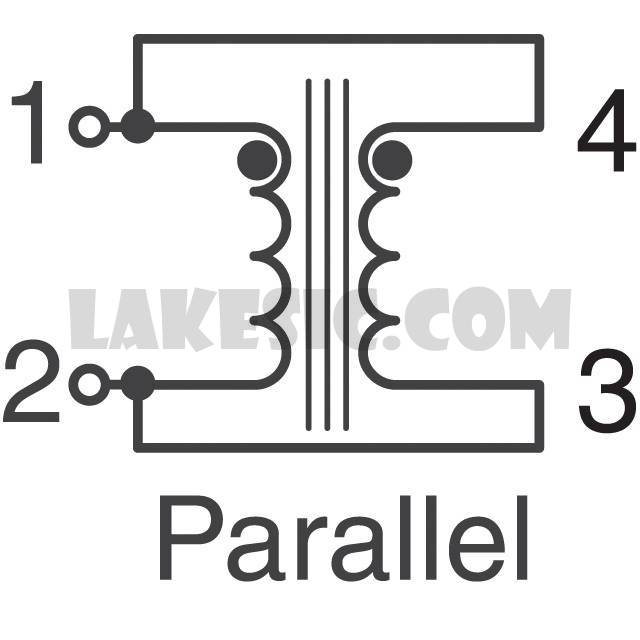

Inductance - Connected In Parallel

15.03µH

Inductance - Connected In Series

60.12µH

Tolerance

±20%

Current Rating - Parallel

1.4A

Current Rating - Series

700mA

DC Resistance (DCR) - Parallel

87mOhm Max

DC Resistance (DCR) - Series

348mOhm Max

Shielding

Unshielded

Ratings

Operating Temperature

-40°C ~ 85°C

Mounting Type

Surface Mount

Package / Case

Nonstandard

Size / Dimension

0.450" L x 0.450" W (11.43mm x 11.43mm)

Height

0.165" (4.19mm)
