Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet CTX Series ECONO-PAC, OCTA-PAC/PLUS
Standard Package 800
Manufacturer Eaton - Electronics Division
Series Econo-Pac™
Packaging Tape & Reel (TR)
Part Status Active
Number of Coils 2
Inductance - Connected In Parallel 300.42µH
Inductance - Connected In Series 1.2mH
Tolerance ±20%
Current Rating - Parallel 420mA
Current Rating - Series 210mA
DC Resistance (DCR) - Parallel 1.176Ohm Max
DC Resistance (DCR) - Series 4.703Ohm Max
Shielding Unshielded
Ratings -
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.450" L x 0.450" W (11.43mm x 11.43mm)
Height 0.235" (5.97mm)

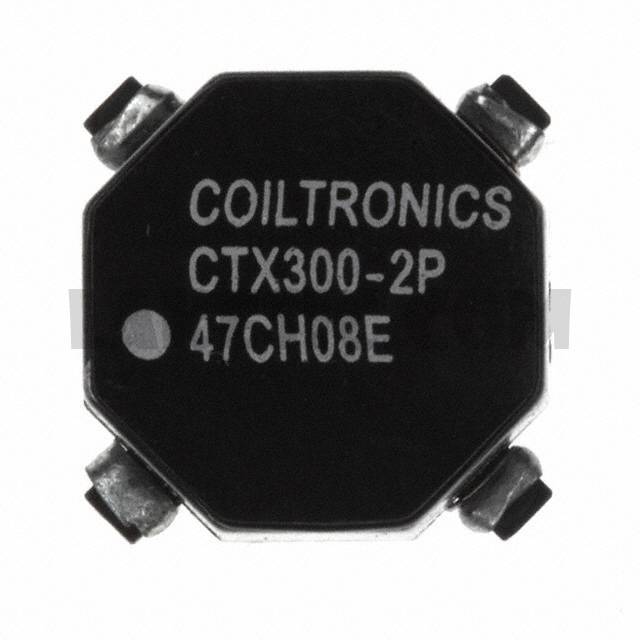

CTX100-2-R
Eaton - Electronics Division, Unshielded 2 Coil Inductor Array 397.81µH Inductance - Connected in Series 99.45µH Inductance - Connected in Parallel 457mOhm Max DC Resistance (DCR) - Parallel 630mA Nonstandard, OCTA-PAC®
View
CTX20-2-R
Eaton - Electronics Division, Unshielded 2 Coil Inductor Array 82.91µH Inductance - Connected in Series 20.73µH Inductance - Connected in Parallel 107mOhm Max DC Resistance (DCR) - Parallel 1.3A Nonstandard, OCTA-PAC®
View
CTX50-2-R
Eaton - Electronics Division, Unshielded 2 Coil Inductor Array 204.73µH Inductance - Connected in Series 51.18µH Inductance - Connected in Parallel 210mOhm Max DC Resistance (DCR) - Parallel 920mA Nonstandard, OCTA-PAC®
View
CTX250-4-R
Eaton - Electronics Division, Unshielded 2 Coil Inductor Array 1mH Inductance - Connected in Series 650mA Nonstandard, OCTA-PAC®
View
CTX100-1P-R
Eaton - Electronics Division, Unshielded 2 Coil Inductor Array 396.06µH Inductance - Connected in Series 99.01µH Inductance - Connected in Parallel 557mOhm Max DC Resistance (DCR) - Parallel 540mA Nonstandard, Econo-Pac™
View
CTX10-4-R
Eaton - Electronics Division, Unshielded 2 Coil Inductor Array 38.42µH Inductance - Connected in Series 9.6µH Inductance - Connected in Parallel 19mOhm Max DC Resistance (DCR) - Parallel 3.4A Nonstandard, OCTA-PAC®
View
CTX33-4A-R
Eaton - Electronics Division, Unshielded 2 Coil Inductor Array 139.2µH Inductance - Connected in Series 34.8µH Inductance - Connected in Parallel 71mOhm Max DC Resistance (DCR) - Parallel 2.49A Nonstandard, OCTA-PAC® PLUS
View
CTX20-1-R
Eaton - Electronics Division, Unshielded 2 Coil Inductor Array 78.4µH Inductance - Connected in Series 19.6µH Inductance - Connected in Parallel 146mOhm Max DC Resistance (DCR) - Parallel 1A Nonstandard, OCTA-PAC®
View
CTX10-4A-R
Eaton - Electronics Division, Unshielded 2 Coil Inductor Array 42.11µH Inductance - Connected in Series 10.53µH Inductance - Connected in Parallel 20mOhm Max DC Resistance (DCR) - Parallel 4.67A Nonstandard, OCTA-PAC® PLUS
View
CTX50-2P-R
Eaton - Electronics Division, Unshielded 2 Coil Inductor Array 196.38µH Inductance - Connected in Series 49.1µH Inductance - Connected in Parallel 305mOhm Max DC Resistance (DCR) - Parallel 820mA Nonstandard, Econo-Pac™
View
CTX8-4A-R
Eaton - Electronics Division, Unshielded 2 Coil Inductor Array 34.8µH Inductance - Connected in Series 8.7µH Inductance - Connected in Parallel 15mOhm Max DC Resistance (DCR) - Parallel 5.49A Nonstandard, OCTA-PAC® PLUS
View
CTX200-4-R
Eaton - Electronics Division, Unshielded 2 Coil Inductor Array 802.82µH Inductance - Connected in Series 200.7µH Inductance - Connected in Parallel 545mOhm Max DC Resistance (DCR) - Parallel 640mA Nonstandard, OCTA-PAC®
