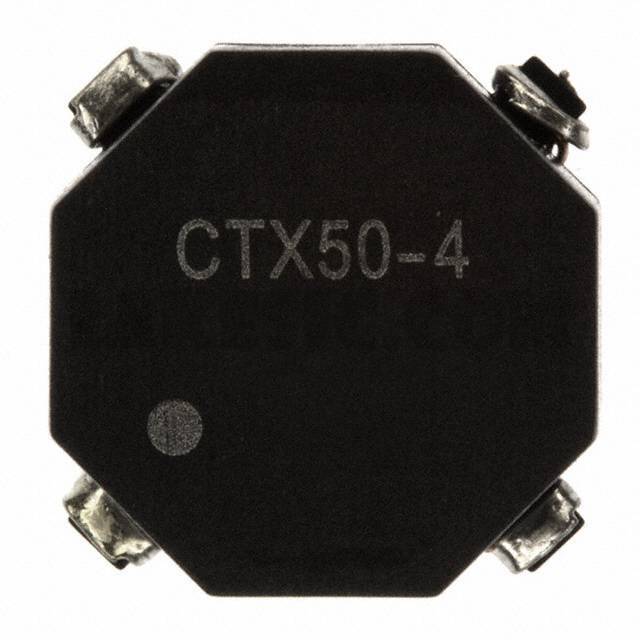

CTX50-4-R


CTX50-4-R

Part NumberCTX50-4-R

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

CTX50-4-R - Product Attributes

Categories Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet
Standard Package1
ManufacturerEaton - Electronics Division
SeriesOCTA-PAC®
PackagingCut Tape (CT)
Part StatusActive
Number of Coils2
Inductance - Connected In Parallel50.18µH
Inductance - Connected In Series200.7µH
Tolerance±20%
Current Rating - Parallel1.5A
Current Rating - Series750mA
DC Resistance (DCR) - Parallel111mOhm Max
DC Resistance (DCR) - Series443mOhm Max
ShieldingUnshielded
Ratings-
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.550" L x 0.550" W (13.97mm x 13.97mm)
Height0.250" (6.35mm)
