Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	CUHS20F30 Datasheet
Standard Package	3000
Manufacturer	Toshiba Semiconductor and Storage
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	2A
Voltage - Forward (Vf) (Max) @ If	470mV @ 2A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	60µA @ 30V
Capacitance @ Vr, F	380pF @ 0V, 1MHz
Mounting Type	Surface Mount

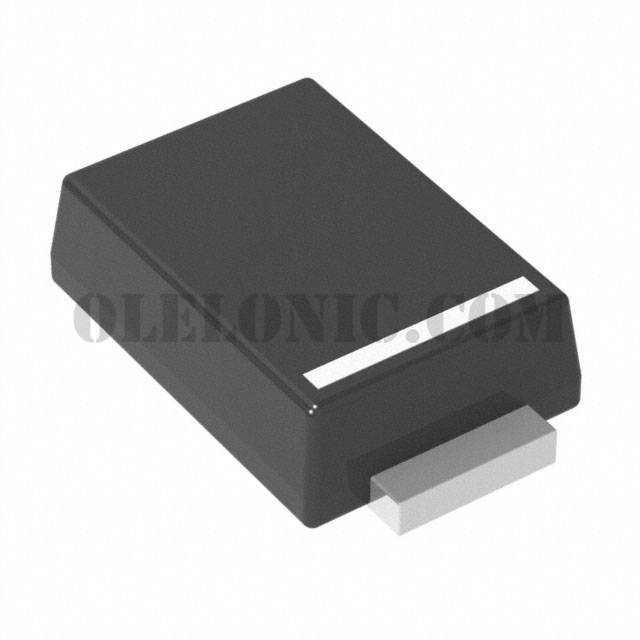

Package / Case	2-SMD, Flat Lead
Supplier Device Package	US2H
Operating Temperature - Junction	150°C (Max)
