Categories	Capacitors / Ceramic Capacitors
Datasheet	EMI Filter X2Y Series
Standard Package	2000
Manufacturer	Yageo
Series	X2Y®
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	1µF
Tolerance	±20%
Voltage - Rated	16V
Temperature Coefficient	X7R
Operating Temperature	-55°C ~ 125°C
Features	Low ESL (X2Y)
Ratings	-
Applications	Bypass, Decoupling
Failure Rate	-
Mounting Type	Surface Mount, MLCC
Package / Case	1210 (3225 Metric)
Size / Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max)	-
Thickness (Max)	0.067" (1.70mm)
Lead Spacing	-
Lead Style	-

101X15N220MV4E	Johanson Dielectrics Inc., 22pF ±20% 100V Ceramic Capacitor C0G, NP0 0805 (2012 Metric), X2Y®	View
500X07W102MV4T	Johanson Dielectrics Inc., 1000pF ±20% 50V Ceramic Capacitor X7R 0402 (1005 Metric), X2Y®	View
500X15W103MV4E	Johanson Dielectrics Inc., 10000pF ±20% 50V Ceramic Capacitor X7R 0805 (2012 Metric), X2Y®	View
CX0603MRX7R0BB152	Yageo, 1500pF ±20% 100V Ceramic Capacitor X7R 0603 (1608 Metric), X2Y®	View
500X14N5R6DV4T	Johanson Dielectrics Inc., 5.6pF ±0.5pF 50V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), X2Y®	View
500X14N470MV4T	Johanson Dielectrics Inc., 47pF ±20% 50V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), X2Y®	View
500X14N5R6DV4T	Johanson Dielectrics Inc., 5.6pF ±0.5pF 50V Ceramic Capacitor C0G, NP0 0603 (1608 Metric), X2Y®	View
500X14W471MV4T	Johanson Dielectrics Inc., 470pF ±20% 50V Ceramic Capacitor X7R 0603 (1608 Metric), X2Y®	View
CX0805MRX7R0BB103	Yageo, 10000pF ±20% 100V Ceramic Capacitor X7R 0805 (2012 Metric), X2Y®	View
500X07N101MV4T	Johanson Dielectrics Inc., 100pF ±20% 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric), X2Y®	View
CX0603MRX7R0BB472	Yageo, 4700pF ±20% 100V Ceramic Capacitor X7R 0603 (1608 Metric), X2Y®	View
500X07N470MV4T	Johanson Dielectrics Inc., 47pF ±20% 50V Ceramic Capacitor C0G, NP0 0402 (1005 Metric), X2Y®	View

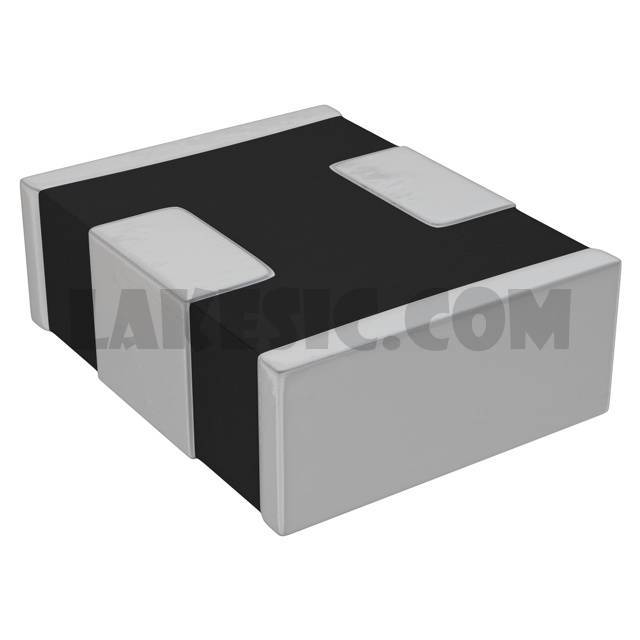

CX1210MKX7R7BB105

Part NumberCX1210MKX7R7BB105
