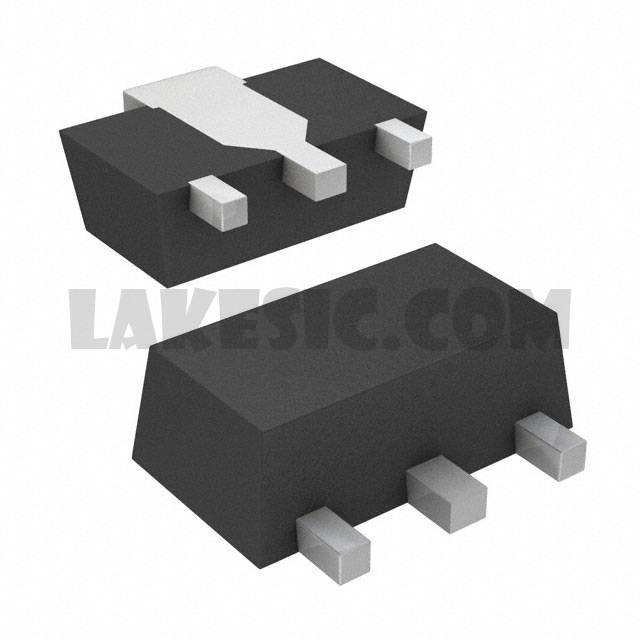

CXDM1002N TR

CXDM1002N TR

Part NumberCXDM1002N TR

ManufacturerCentral Semiconductor Corp

DescriptionMOSFET N-CH 100V 2A SOT-89

DatasheetCXDM1002N

Package / CaseTO-243AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 2A (Ta) 1.2W (Ta) Surface Mount SOT-89

To learn about the specification of CXDM1002N TR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CXDM1002N TR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CXDM1002N TR.
We are offering CXDM1002N TR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CXDM1002N TR - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	CXDM1002N
Standard Package	1000
Manufacturer	Central Semiconductor Corp
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	300mOhm @ 2A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	6nC @ 5V
Vgs (Max)	20V
Input Capacitance (Ciss) (Max) @ Vds	550pF @ 25V
FET Feature	-
Power Dissipation (Max)	1.2W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-89
Package / Case	TO-243AA
