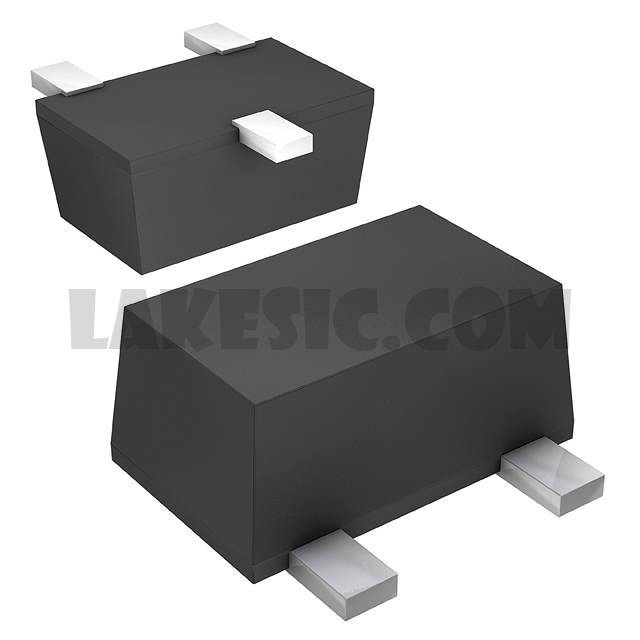

DAN202UMFHTL

Part NumberDAN202UMFHTL

ManufacturerRohm Semiconductor

DescriptionSWITCHING DIODES (CORRESPONDS TO

DatasheetDAN202UMFH

Package / CaseSC-85

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Standard 80V 100mA Surface Mount SC-85

To learn about the specification of DAN202UMFHTL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DAN202UMFHTL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DAN202UMFHTL.
We are offering DAN202UMFHTL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DAN202UMFHTL - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Rectifiers - Arrays

Datasheet

DAN202UMFH

Standard Package

Manufacturer

Rohm Semiconductor

Series

Automotive, AEC-Q101

Packaging

Cut Tape (CT)

Part Status

Active

Diode Configuration

1 Pair Common Cathode

Diode Type

Standard

Voltage - DC Reverse (Vr) (Max)

80V

Current - Average Rectified (Io) (per Diode)

100mA

Voltage - Forward (Vf) (Max) @ If

1.2V @ 100mA

Speed

Small Signal =< 200mA (Io), Any Speed

Reverse Recovery Time (trr)

4ns

Current - Reverse Leakage @ Vr

100nA @ 70V

Operating Temperature - Junction

150°C (Max)

Mounting Type

Surface Mount

Package / Case

SC-85

Supplier Device Package

UMD3F
