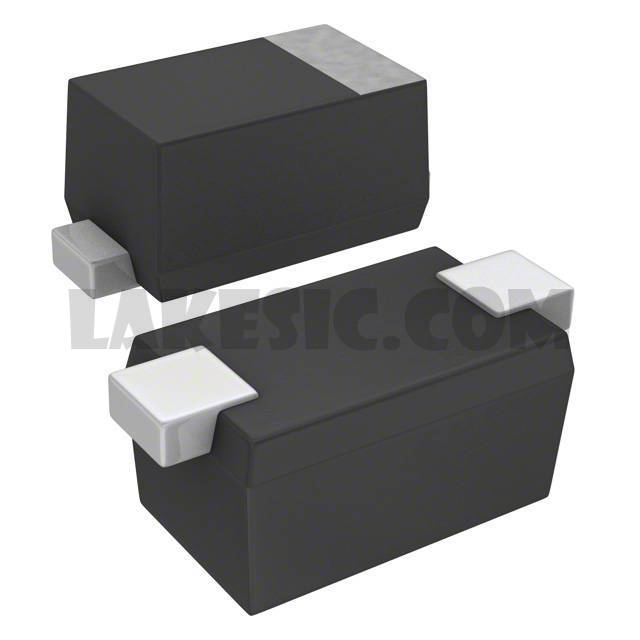

DB2141300L

DB2141300L

Part NumberDB2141300L

ManufacturerPanasonic Electronic Components

DescriptionDIODE SCHOTTKY 40V 2A SMINI2

DatasheetDB2141300L

Package / Case2-SMD, Flat Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 40V 2A Surface Mount SMINI2-F4-B-B

To learn about the specification of DB2141300L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DB2141300L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DB2141300L.
We are offering DB2141300L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DB2141300L - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	DB2141300L
Standard Package	3000
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io)	2A
Voltage - Forward (Vf) (Max) @ If	530mV @ 2A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	12ns
Current - Reverse Leakage @ Vr	150µA @ 40V
Capacitance @ Vr, F	43pF @ 10V, 1MHz
Mounting Type	Surface Mount
Package / Case	2-SMD, Flat Lead
Supplier Device Package	SMINI2-F4-B-B
Operating Temperature - Junction	150°C (Max)
Base Part Number	DB21413
