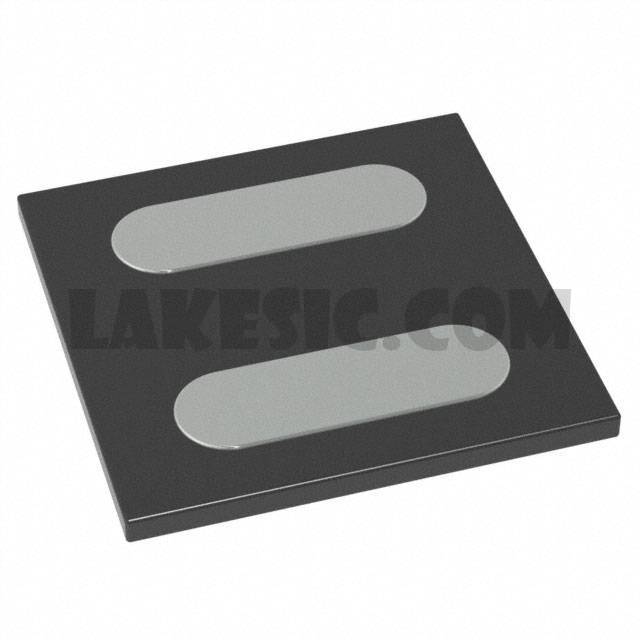

DB2F43100L1

DB2F43100L1

Part NumberDB2F43100L1

ManufacturerPanasonic Electronic Components

DescriptionCSP SCHOTTKY BARRIER DIODE

DatasheetDB2F43100L1 Spec

Package / Case0606 (1616 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 40V 5A Surface Mount DCSP1616010-N1

To learn about the specification of DB2F43100L1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DB2F43100L1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DB2F43100L1.
We are offering DB2F43100L1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DB2F43100L1 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	DB2F43100L1 Spec
Standard Package	1
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io)	5A
Voltage - Forward (Vf) (Max) @ If	600mV @ 5A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	45ns
Current - Reverse Leakage @ Vr	100µA @ 40V
Capacitance @ Vr, F	140pF @ 10V, 1MHz
Mounting Type	Surface Mount
Package / Case	0606 (1616 Metric)
Supplier Device Package	DCSP1616010-N1
Operating Temperature - Junction	150°C (Max)
