DB2J31000L

DB2J31000L

Part NumberDB2J31000L

ManufacturerPanasonic Electronic Components

DescriptionDIODE SCHOTTKY 30V 200MA SMINI2

DatasheetDB2J310

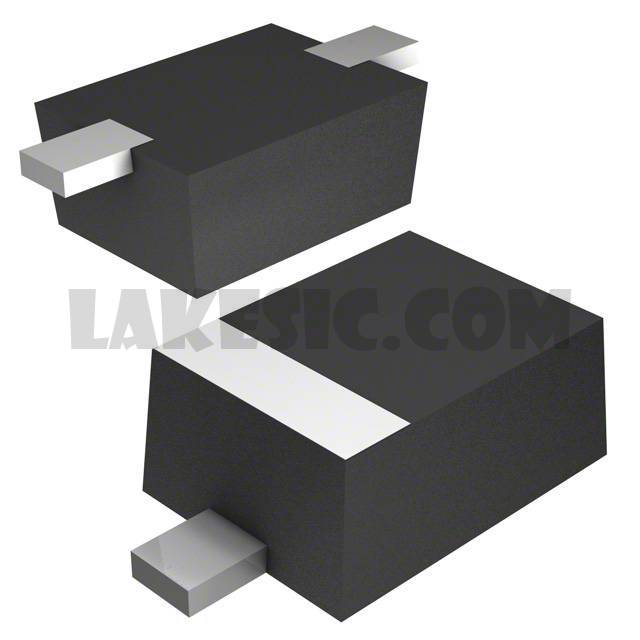

Package / CaseSC-90, SOD-323F

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 30V 200mA Surface Mount SMini2-F5-B

To learn about the specification of DB2J31000L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DB2J31000L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DB2J31000L.
We are offering DB2J31000L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DB2J31000L - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	DB2J310
Standard Package	1
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	200mA
Voltage - Forward (Vf) (Max) @ If	470mV @ 200mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	1.6ns
Current - Reverse Leakage @ Vr	200µA @ 30V
Capacitance @ Vr, F	4.5pF @ 10V, 1MHz
Mounting Type	Surface Mount
Package / Case	SC-90, SOD-323F
Supplier Device Package	SMini2-F5-B
Operating Temperature - Junction	125°C (Max)
Base Part Number	DB2J310
