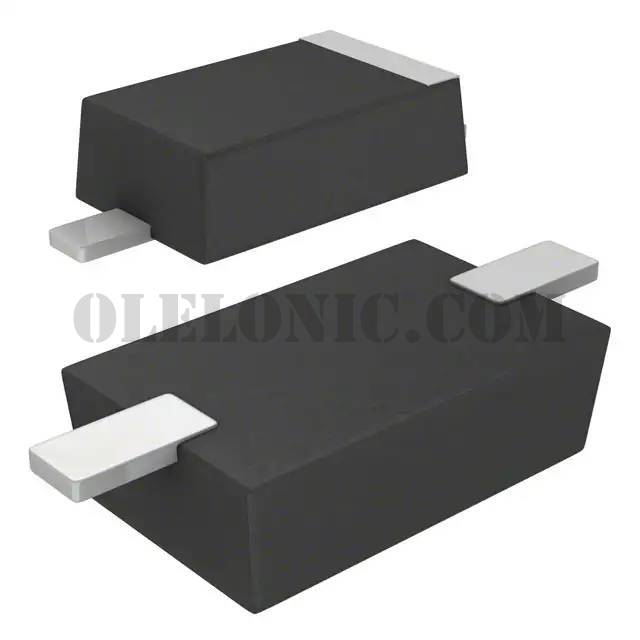

DB2W31900L

DB2W31900L

Part NumberDB2W31900L

ManufacturerPanasonic Electronic Components

DescriptionDIODE SCHOTTKY 30V 3A MINI2

DatasheetDB2W31900L

Package / CaseSOD-123F

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 30V 3A Surface Mount Mini2-F3-B

To learn about the specification of DB2W31900L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DB2W31900L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DB2W31900L.
We are offering DB2W31900L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DB2W31900L - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	DB2W31900L
Standard Package	1
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	3A
Voltage - Forward (Vf) (Max) @ If	490mV @ 3A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	23ns
Current - Reverse Leakage @ Vr	200µA @ 30V
Capacitance @ Vr, F	70pF @ 10V, 1MHz
Mounting Type	Surface Mount
Package / Case	SOD-123F
Supplier Device Package	Mini2-F3-B
Operating Temperature - Junction	125°C (Max)
Base Part Number	DB2W319
