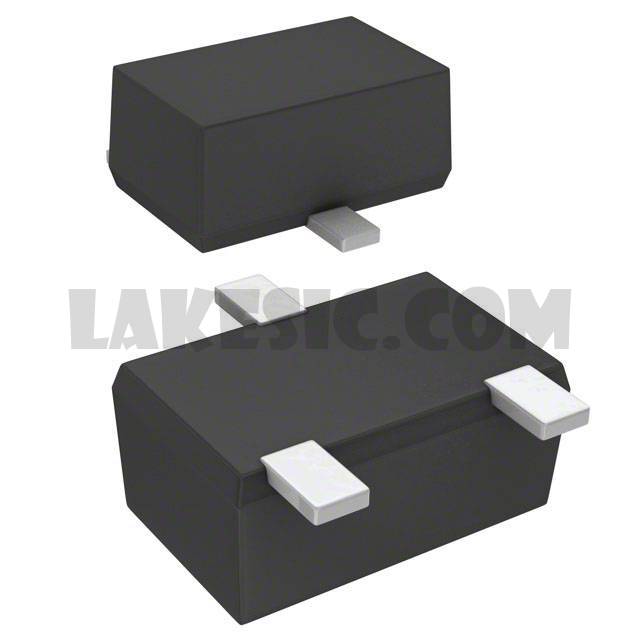

DB3J314F0L

Part NumberDB3J314F0L

ManufacturerPanasonic Electronic Components

DescriptionDIODE ARRAY SCHOTTKY 30V SMINI3

DatasheetDB3J314F0L

Package / CaseSC-85

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Series Connection Schottky 30V 30mA (DC) Surface Mount SC-85

To learn about the specification of DB3J314F0L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DB3J314F0L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DB3J314F0L.
We are offering DB3J314F0L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DB3J314F0L - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	DB3J314F0L
Standard Package	1
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Configuration	1 Pair Series Connection
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io) (per Diode)	30mA (DC)
Voltage - Forward (Vf) (Max) @ If	1V @ 30mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	1ns
Current - Reverse Leakage @ Vr	300nA @ 30V
Operating Temperature - Junction	125°C (Max)
Mounting Type	Surface Mount
Package / Case	SC-85
Supplier Device Package	SMini3-F2-B
Base Part Number	DB3J314
