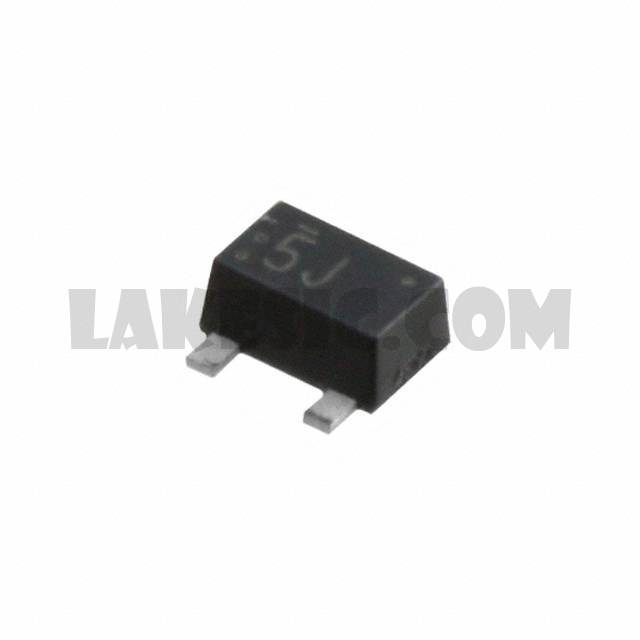

DB3J316N0L

Part NumberDB3J316N0L

ManufacturerPanasonic Electronic Components

DescriptionDIODE ARRAY SCHOTTKY 30V SMINI3

DatasheetDB3J316N0L

Package / CaseSC-85

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Schottky 30V 100mA Surface Mount SC-85

To learn about the specification of DB3J316N0L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DB3J316N0L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DB3J316N0L.
We are offering DB3J316N0L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DB3J316N0L - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	DB3J316N0L
Standard Package	3000
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Configuration	1 Pair Common Cathode
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io) (per Diode)	100mA
Voltage - Forward (Vf) (Max) @ If	550mV @ 100mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	800ps
Current - Reverse Leakage @ Vr	15µA @ 30V
Operating Temperature - Junction	125°C (Max)
Mounting Type	Surface Mount
Package / Case	SC-85
Supplier Device Package	SMini3-F2-B
Base Part Number	DB3J316
