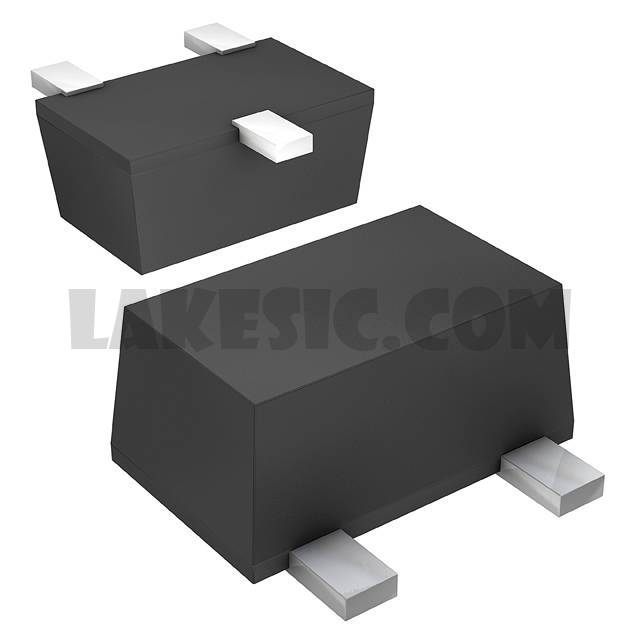

DB3J407K0L

DB3J407K0L

Part NumberDB3J407K0L

ManufacturerPanasonic Electronic Components

DescriptionDIODE SCHOTTKY 40V 500MA SMINI3

DatasheetDB3J407K

Package / CaseSC-85

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 40V 500mA Surface Mount SMini3-F2-B

To learn about the specification of DB3J407K0L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DB3J407K0L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DB3J407K0L.
We are offering DB3J407K0L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DB3J407K0L - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	DB3J407K
Standard Package	3000
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io)	500mA
Voltage - Forward (Vf) (Max) @ If	550mV @ 500mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	5ns
Current - Reverse Leakage @ Vr	100µA @ 35V
Capacitance @ Vr, F	12pF @ 10V, 1MHz
Mounting Type	Surface Mount
Package / Case	SC-85
Supplier Device Package	SMini3-F2-B
Operating Temperature - Junction	125°C (Max)
Base Part Number	DB3J407K
