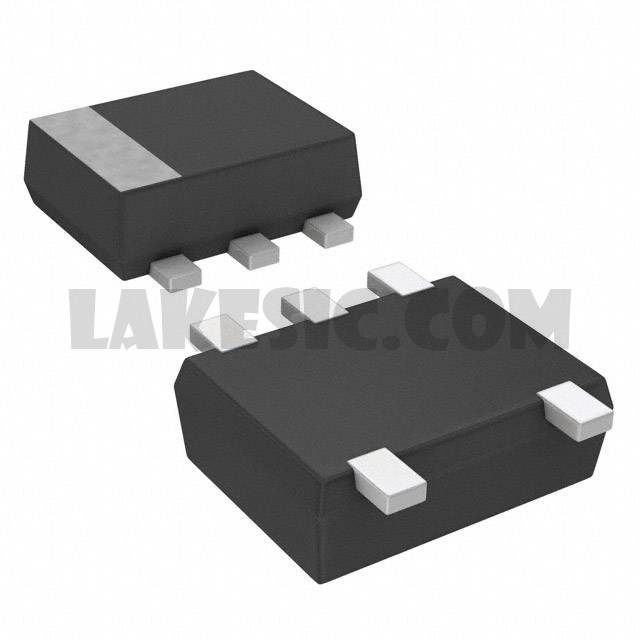

DB5S310K0R

Part NumberDB5S310K0R

ManufacturerPanasonic Electronic Components

DescriptionDIODE ARRAY SCHOTTKY 30V SSMINI5

DatasheetDB5S310K0R

Package / CaseSOT-665

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 2 Independent Schottky 30V 200mA Surface Mount SOT-665

To learn about the specification of DB5S310K0R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DB5S310K0R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DB5S310K0R.
We are offering DB5S310K0R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DB5S310K0R - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	DB5S310K0R
Standard Package	8000
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Configuration	2 Independent
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io) (per Diode)	200mA
Voltage - Forward (Vf) (Max) @ If	470mV @ 200mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	1.6ns
Current - Reverse Leakage @ Vr	200µA @ 30V
Operating Temperature - Junction	125°C (Max)
Mounting Type	Surface Mount
Package / Case	SOT-665
Supplier Device Package	SSMini5-F4-B
Base Part Number	DB5S310
