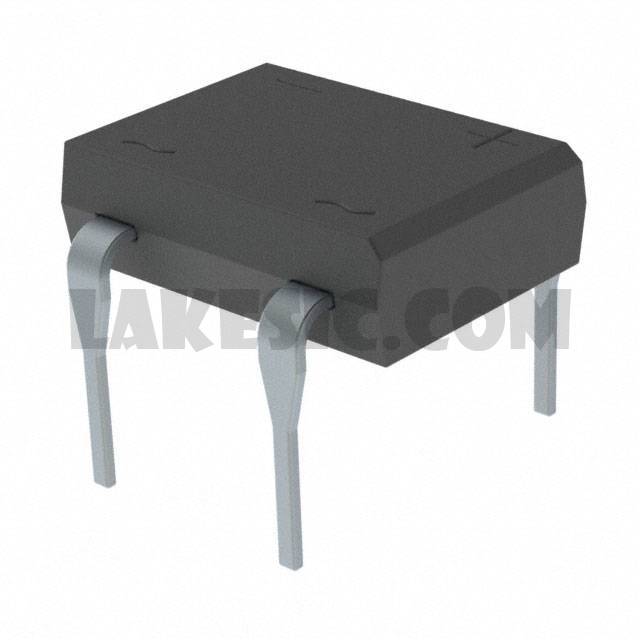

Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	DBL101G - DBL107G
Standard Package	100
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Packaging	Tube
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	800V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 15A
Current - Reverse Leakage @ Vr	2µA @ 800V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	4-DIP (0.300", 7.62mm)
Supplier Device Package	DBL
