DCX124EK-7-F

Part NumberDCX124EK-7-F

ManufacturerDiodes Incorporated

DescriptionTRANS NPN/PNP PREBIAS 0.3W SC74R

DatasheetDCX1yyzK

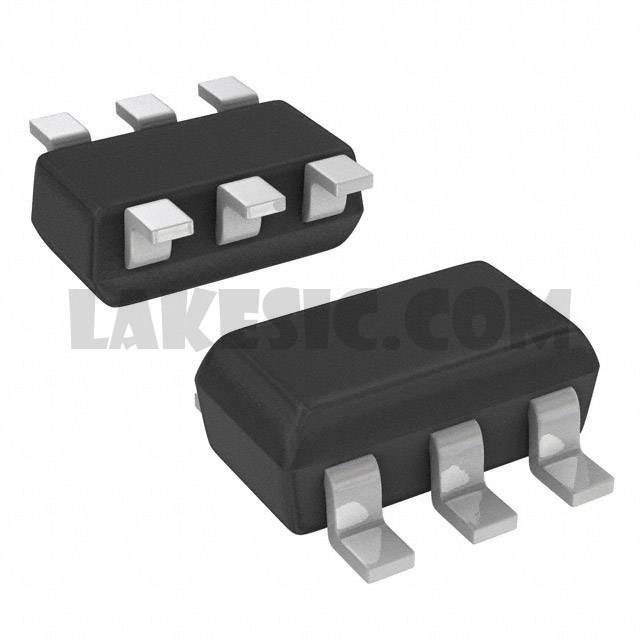

Package / CaseSC-74, SOT-457

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionPre-Biased Bipolar Transistor (BJT) 1 NPN, 1 PNP - Pre-Biased (Dual) 50V 100mA 250MHz 300mW Surface Mount SC-74R

To learn about the specification of DCX124EK-7-F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DCX124EK-7-F with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DCX124EK-7-F.
We are offering DCX124EK-7-F for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DCX124EK-7-F - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Datasheet	DCX1yyzK
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max)	100mA
Voltage - Collector Emitter Breakdown (Max)	50V
Resistor - Base (R1)	22kOhms
Resistor - Emitter Base (R2)	22kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce	80 @ 5mA, 5V
Vce Saturation (Max) @ Ib, Ic	300mV @ 500µA, 10mA
Current - Collector Cutoff (Max)	500nA
Frequency - Transition	250MHz
Power - Max	300mW
Mounting Type	Surface Mount
Package / Case	SC-74, SOT-457
Supplier Device Package	SC-74R
Base Part Number	DCX124
