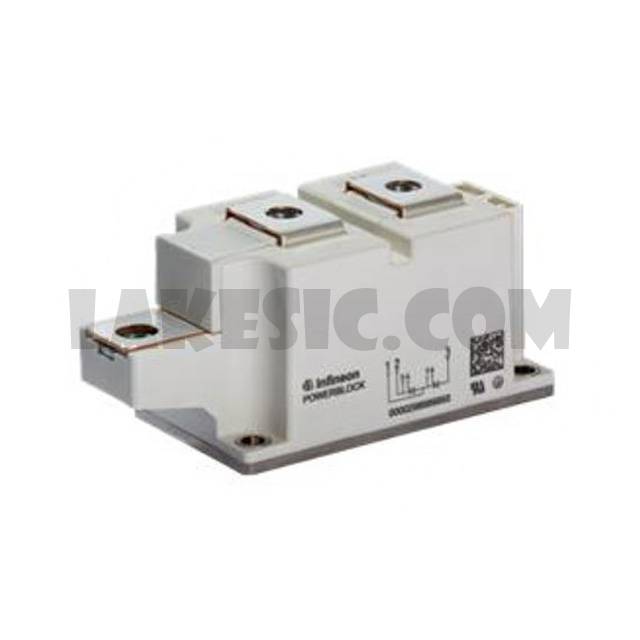

DD340N16SHPSA1

Part NumberDD340N16SHPSA1

ManufacturerInfineon Technologies

DescriptionDIODE MODULE GP 1600V 330A

DatasheetDD340N16S

Package / CaseModule

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Series Connection Standard 1600V 330A Chassis Mount Module

To learn about the specification of DD340N16SHPSA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DD340N16SHPSA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DD340N16SHPSA1.
We are offering DD340N16SHPSA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DD340N16SHPSA1 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	DD340N16S
Standard Package	3
Manufacturer	Infineon Technologies
Series	-
Packaging	Tray
Part Status	Active
Diode Configuration	1 Pair Series Connection
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1600V
Current - Average Rectified (Io) (per Diode)	330A
Voltage - Forward (Vf) (Max) @ If	1.31V @ 1600A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	1mA @ 1600V
Operating Temperature - Junction	-40°C ~ 130°C
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	Module
