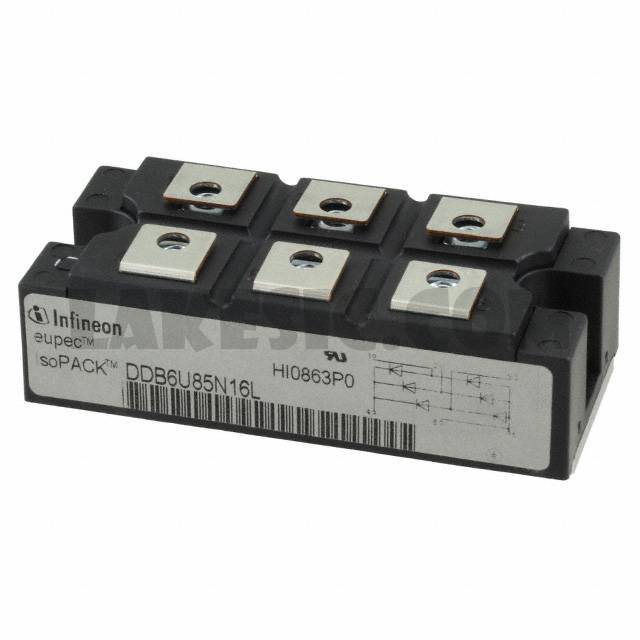

DDB6U85N16LHOSA1

Part NumberDDB6U85N16LHOSA1

ManufacturerInfineon Technologies

DescriptionIGBT MODULE 1600V 60A

DatasheetDDB6U85N16

Package / CaseModule

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 3 Independent Standard 1600V 60A Chassis Mount Module

To learn about the specification of DDB6U85N16LHOSA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DDB6U85N16LHOSA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DDB6U85N16LHOSA1.
We are offering DDB6U85N16LHOSA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DDB6U85N16LHOSA1 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	DDB6U85N16
Standard Package	4
Manufacturer	Infineon Technologies
Series	-
Packaging	Tray
Part Status	Active
Diode Configuration	3 Independent
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1600V
Current - Average Rectified (Io) (per Diode)	60A
Voltage - Forward (Vf) (Max) @ If	1.44V @ 100A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	5mA @ 1600V
Operating Temperature - Junction	150°C (Max)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	AG-ISOPACK-1
