Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers

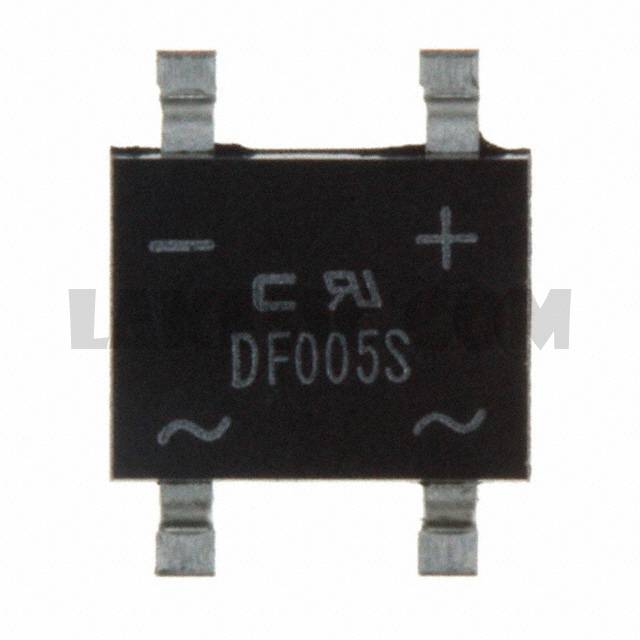

Datasheet	DF005S thru DF10S-G
Standard Package	50
Manufacturer	Comchip Technology
Series	-
Packaging	Tube
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	50V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1A
Current - Reverse Leakage @ Vr	10µA @ 50V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	DFS
Base Part Number	DF005
