Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	DF005S - DF10S
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	400V
Current - Average Rectified (Io)	1.5A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1.5A
Current - Reverse Leakage @ Vr	5µA @ 400V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SDIP
Base Part Number	DF04

DFL1510S-E3/77	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 1kV Surface Mount DFS,	View
CD-HD2004	Bourns Inc., Bridge Rectifier Single Phase Schottky 40V Surface Mount,	View
MB8S	ON Semiconductor, Bridge Rectifier Single Phase Standard 800V Surface Mount 4-SOIC,	View
T483F	Sensata-Crydom, Bridge Rectifier Single Phase Standard 1.2kV Surface Mount Module,	View
MB1S	ON Semiconductor, Bridge Rectifier Single Phase Standard 100V Surface Mount 4-SOIC,	View
CBRLDSH1-40 TR13	Central Semiconductor Corp, Bridge Rectifier Single Phase Schottky 40V Surface Mount 4-LPDIP,	View
NSR1030QMUTWG	ON Semiconductor, Bridge Rectifier Single Phase Schottky 30V Surface Mount 4-UDFN (3x3),	View
CBR1-D020S TR13	Central Semiconductor Corp, Bridge Rectifier Single Phase Standard 200V Surface Mount 4-SMDIP,	View
DF04S2	ON Semiconductor, Bridge Rectifier Single Phase Standard 400V Surface Mount 4-SDIP,	View
MB2S-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 200V Surface Mount MBS-1,	View
SDB155-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 600V Surface Mount SDB-1,	View
DBLS209G RDG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 1.4kV Surface Mount DBLS,	View

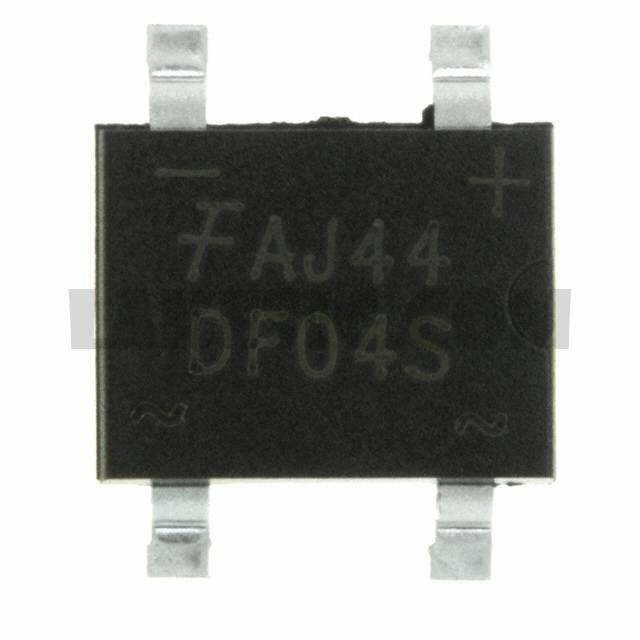

DF04S

Part NumberDF04S
