Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	DF005S1 - DF10S1
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	600V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1A
Current - Reverse Leakage @ Vr	5µA @ 600V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SDIP

CBR1-D100S TR13	Central Semiconductor Corp, Bridge Rectifier Single Phase Standard 1kV Surface Mount 4-SMDIP,	View
CBRHD-01 TR13	Central Semiconductor Corp, Bridge Rectifier Single Phase Standard 100V Surface Mount 4-HD DIP,	View
KMB215STR	SMC Diode Solutions, Bridge Rectifier Single Phase Schottky 150V Surface Mount MBS,	View
DF005S-E3/77	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 50V Surface Mount DFS,	View
CBRLDSH2-60 TR13	Central Semiconductor Corp, Bridge Rectifier Single Phase Schottky 60V Surface Mount 4-LPDIP,	View
SDB204-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 400V Surface Mount SDB-1,	View
CDBHM1100L-HF	Comchip Technology, Bridge Rectifier Single Phase Schottky 100V Surface Mount MBS,	View
RMB6S RCG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 600V Surface Mount MBS,	View
CDBHD2100-G	Comchip Technology, Bridge Rectifier Single Phase Schottky 100V Surface Mount Mini-Dip (TO-269AA),	View
DB157STR	SMC Diode Solutions, Bridge Rectifier Single Phase Standard 1kV Surface Mount DB-S,	View
SDB103-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 200V Surface Mount SDB-1,	View
UABF1510-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount 4-SOPA,	View

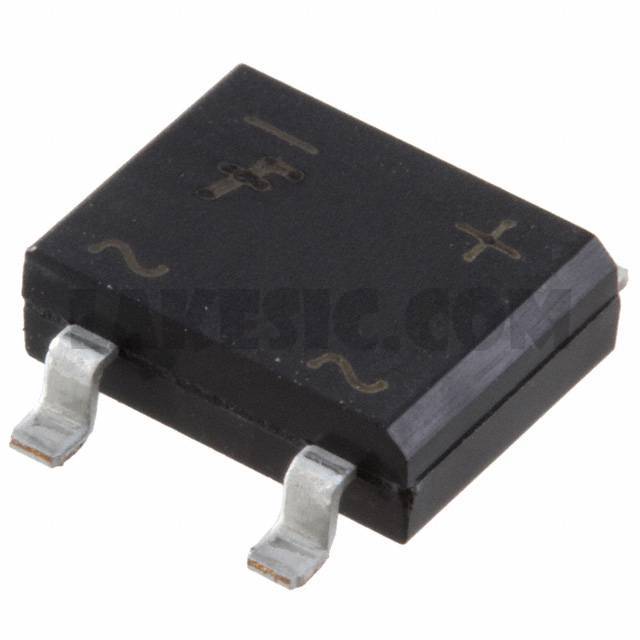

DF06S1

Part NumberDF06S1
