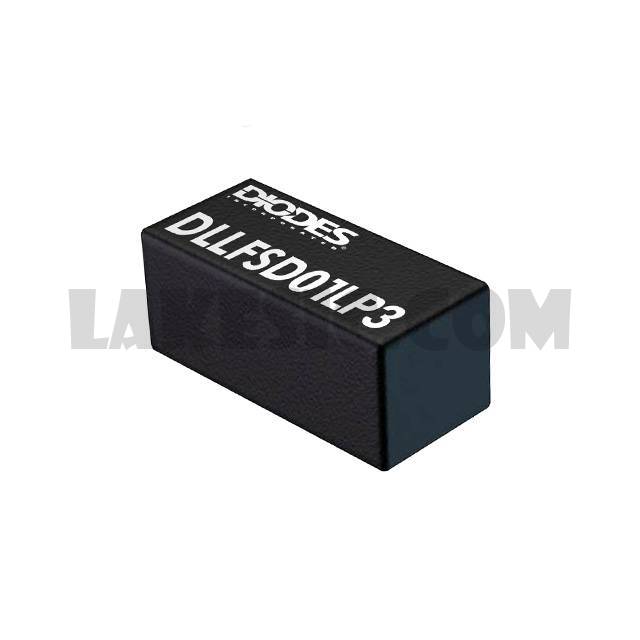

DLLFSD01LP3-7

DLLFSD01LP3-7

Part NumberDLLFSD01LP3-7

ManufacturerDiodes Incorporated

DescriptionDIODE GEN PURP 80V 100MA 2DFN

DatasheetDLLFSD01LP3

Package / Case0201 (0603 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 80V 100mA Surface Mount X3-DFN0603-2

To learn about the specification of DLLFSD01LP3-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DLLFSD01LP3-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DLLFSD01LP3-7.
We are offering DLLFSD01LP3-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DLLFSD01LP3-7 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	DLLFSD01LP3
Standard Package	10000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	80V
Current - Average Rectified (Io)	100mA
Voltage - Forward (Vf) (Max) @ If	1.2V @ 100mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	4ns
Current - Reverse Leakage @ Vr	200nA @ 80V
Capacitance @ Vr, F	2.5pF @ 0V, 1MHz
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	X3-DFN0603-2
Operating Temperature - Junction	-65°C ~ 150°C
