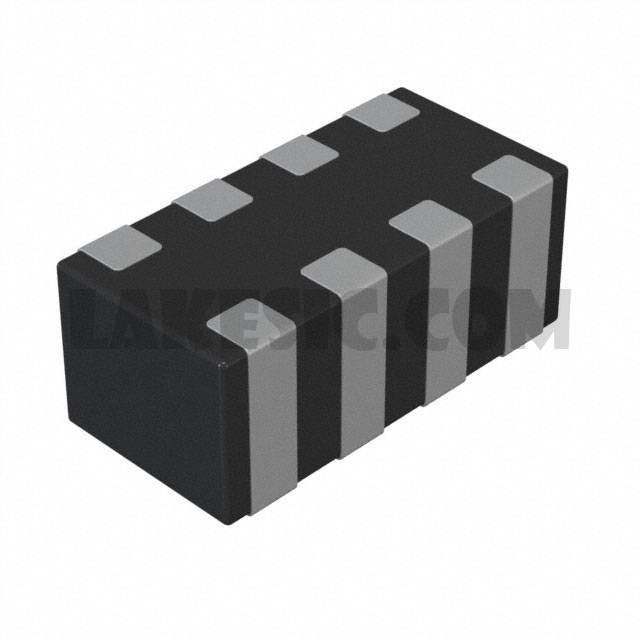

DLP2ADN201HL4L

Part NumberDLP2ADN201HL4L

ManufacturerMurata Electronics North America

DescriptionCMC 90MA 4LN 200 OHM SMD

DatasheetDLP2ADNyyyHL4y Spec

Package / Case0804 (2010 Metric), 8 Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description4 Line Common Mode Choke Surface Mount 200 Ohms @ 100MHz 90mA DCR 4Ohm

To learn about the specification of DLP2ADN201HL4L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DLP2ADN201HL4L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DLP2ADN201HL4L.
We are offering DLP2ADN201HL4L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DLP2ADN201HL4L - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	DLP2ADNyyyHL4y Spec
Standard Package	1
Manufacturer	Murata Electronics North America
Series	DLP2A
Packaging	Cut Tape (CT)
Part Status	Active
Filter Type	Signal Line
Number of Lines	4
Impedance @ Frequency	200 Ohms @ 100MHz
Current Rating (Max)	90mA
DC Resistance (DCR) (Max)	4Ohm
Voltage Rating - DC	5V
Voltage Rating - AC	-
Operating Temperature	-40°C ~ 85°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.079" L x 0.039" W (2.00mm x 1.00mm)
Height (Max)	0.036" (0.92mm)
Package / Case	0804 (2010 Metric), 8 Lead
