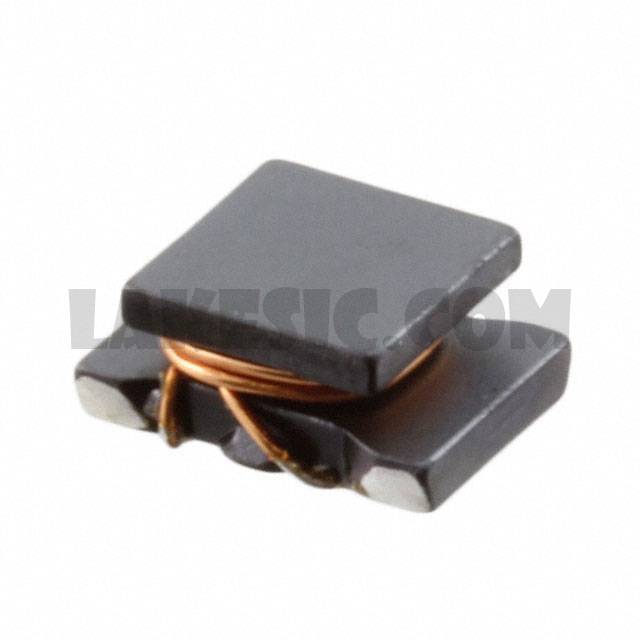

DLW5ATH450TQ2L

Part NumberDLW5ATH450TQ2L

ManufacturerMurata Electronics North America

DescriptionCOMMON MODE CHOKE

DatasheetDLW5ATHyyyTQ2y Spec

Package / CaseHorizontal, 4 PC Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2 Line Common Mode Choke Surface Mount 45 Ohms @ 100MHz 4A DCR 13mOhm

To learn about the specification of DLW5ATH450TQ2L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DLW5ATH450TQ2L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DLW5ATH450TQ2L.
We are offering DLW5ATH450TQ2L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DLW5ATH450TQ2L - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	DLW5ATHyyyTQ2y Spec
Standard Package	1
Manufacturer	Murata Electronics North America
Series	DLW5A
Packaging	Cut Tape (CT)
Part Status	Active
Filter Type	Power, Signal Line
Number of Lines	2
Impedance @ Frequency	45 Ohms @ 100MHz
Current Rating (Max)	4A
DC Resistance (DCR) (Max)	13mOhm
Voltage Rating - DC	50V
Voltage Rating - AC	-
Operating Temperature	-40°C ~ 125°C
Ratings	AEC-Q200
Approvals	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.197" L x 0.142" W (5.00mm x 3.60mm)
Height (Max)	0.093" (2.35mm)
Package / Case	Horizontal, 4 PC Pad
